Brand: VENIT/OEM
Looking for reliable suppliers of advanced JIS Type Eye & Hook Turnbuckles in China? We offer top-quality, durable, and precision-engineered turnbuckles that meet JIS Standards.

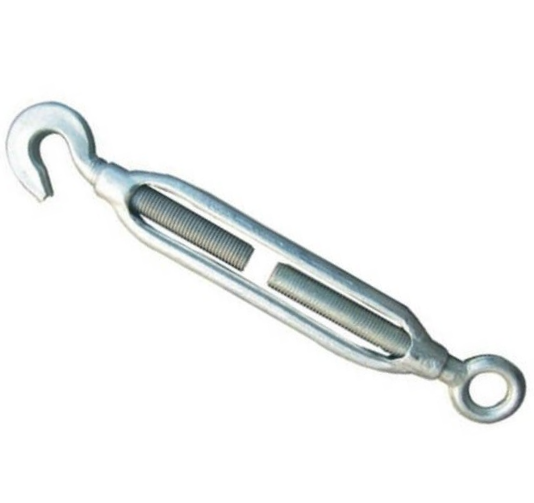

JIS Type Eye & Hook Turnbuckle
Product Features:
Type: Eye & Hook, Hook & Hook, Eye & Eye
Surface Treatment: Electric Galvanized, Hot Dip
Galvanized
Special specifications and marks can be made according to customer’s requirement

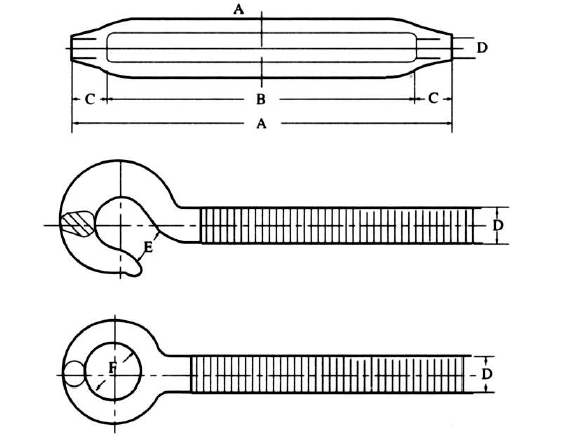

| NOMINAL SIZE | (1) BODY ONLY | (2) EYE&EYE | (3)HOOK&EYE | (4) HOOK & HOOK | |||||||||||
| A | B | C | T.L | W/PC | F | T.L | W/PC | T.L | W/PC | E | T.L | W/PC | |||
| mm | in | mm | in | mm | mm | Ton | Kg | mm | Ton | Kg | Ton | Kg | mm | Ton | Kg |
| 6 | 1/4 | 100 | 4 | 78 | 11 | 1 | 0.08 | 10 | 0.1 | 0.116 | 0.04 | 0.114 | 9 | 0.04 | 0.112 |
| 8 | 5/16 | 125 | 5 | 100 | 12.5 | 1.2 | 0.15 | 12 | 0.2 | 0.22 | 0.08 | 0.218 | 9 | 0.08 | 0.22 |
| 9 | 3/8 | 150 | 6 | 120 | 12.5 | 1.5 | 0.17 | 16 | 0.5 | 0.30 | 0.15 | 0.293 | 11 | 0.15 | 0.273 |
| 12 | 1/2 | 200 | 8 | 164 | 18 | 2 | 0.29 | 20 | 2 | 0.58 | 0.35 | 0.585 | 16 | 0.35 | 0.51 |
| 16 | 5/8 | 250 | 10 | 202 | 21.5 | 3 | 0.52 | 22 | 3 | 1.07 | 0.7 | 1.05 | 19 | 0.7 | 0.95 |
| 19 | 3/4 | 300 | 12 | 250 | 25 | 4 | 0.85 | 28 | 4 | 1.77 | 1.0 | 1.78 | 20 | 1.0 | 1.62 |
| 22 | 7/8 | 325 | 13 | 269 | 28 | 5 | 1.17 | 33 | 5 | 2.55 | 1.5 | 2.58 | 21 | 1.5 | 2.34 |
| 25 | 1 | 350 | 14 | 285 | 32.5 | 6 | 1.69 | 35 | 6 | 3.79 | 2.0 | 3.77 | 26 | 2.0 | 3.27 |
| 32 | 1-1/4 | 400 | 16 | 310 | 45 | 8 | 3.51 | 36X70 | 10 | 7.6 | 3.0 | 7.52 | 34 | 3.0 | 6.52 |
| 38 | 1-1/2 | 450 | 18 | 350 | 55 | 10 | 5.08 | 40X80 | 15 | 13.50 | 4.0 | 12.8 | 35 | 4.0 | 13 |
| 44 | 1-3/4 | 500 | 20 | 386 | 57 | ▬ | 9.00 | ▬ | ▬ | ▬ | ▬ | ▬ | ▬ | ▬ | ▬ |
| 50 | 2 | 550 | 22 | 420 | 65 | ▬ | 11.50 | ▬ | ▬ | ▬ | ▬ | ▬ | ▬ | ▬ | ▬ |
