Brand: VENIT/OEM
The Turnbuckle features a Hook-to-Hook design that allows for easy and secure connections to Rigging, Wire Rope and other equipment.

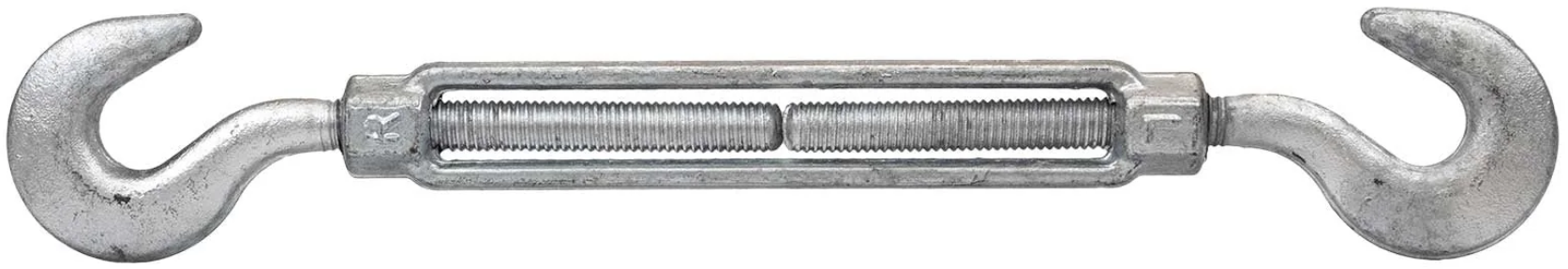

US Type Drop Forged Hook & Hook Type Turnbuckle
Product Features:
Meets the design requirements of US Federal Specifications.
End fittings are Quenched and Tempered, bodies heat treated by normalizing.
Proof tested to 2 x WLL and Minimum Break Force is 5 x WLL.
Excellent Fatigue Rating.
Certified for Lifting.

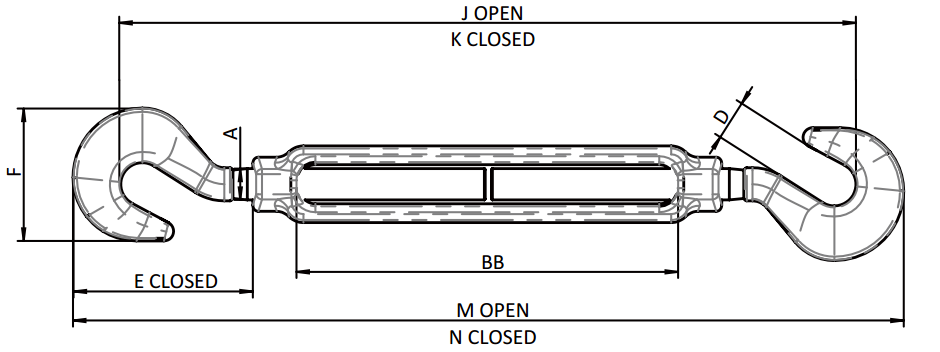

| Thread Dia | Working load limited | Weight | Dimensions(in) | ||||||||
| & | Each | A | D | E | F | J | K | M | N | BB | |
| Take Up (in.) | (lbs) | (lbs) | Closed | Open | Closed | Open | Closed | ||||
| 1/4×4 | 400 | 0.33 | 0.25 | 0.45 | 1.59 | 1.27 | 11.12 | 7.12 | 11.94 | 7.94 | 4 |
| 5/16×41/2 | 700 | 0.47 | 0.31 | 0.5 | 1.94 | 1.5 | 12.81 | 8.31 | 13.81 | 9.31 | 4.5 |
| 3/8×6 | 1000 | 0.78 | 0.38 | 0.56 | 2.3 | 1.77 | 16.5 | 10.5 | 17.72 | 11.72 | 6 |
| 1/2×6 | 1500 | 1.6 | 0.5 | 0.66 | 2.94 | 2.28 | 17.82 | 11.82 | 19.38 | 13.38 | 6 |
| 1/2×9 | 1500 | 1.83 | 0.5 | 0.66 | 2.94 | 2.28 | 23.82 | 14.82 | 25.35 | 16.38 | 9 |
| 1/2×12 | 1500 | 2.28 | 0.5 | 0.66 | 2.94 | 2.28 | 29.82 | 17.82 | 31.38 | 19.38 | 12 |
| 5/8×6 | 2250 | 2.75 | 0.63 | 0.84 | 3.69 | 2.81 | 19.25 | 13.25 | 21.25 | 15.25 | 6 |
| 5/8×9 | 2250 | 3.38 | 0.63 | 0.84 | 3.69 | 2.81 | 25.25 | 16.25 | 27.25 | 18.25 | 9 |
| 5/8×12 | 2250 | 3.5 | 0.75 | 0.84 | 3.69 | 2.81 | 31.25 | 19.25 | 33.25 | 21.25 | 12 |
| 3/4×6 | 3000 | 3.89 | 0.75 | 0.98 | 4.52 | 3.33 | 20.88 | 14.88 | 23.28 | 17.28 | 6 |
| 3/4×9 | 3000 | 5.28 | 0.75 | 0.98 | 4.52 | 3.33 | 26.88 | 17.88 | 29.28 | 20.28 | 9 |
| 3/4×12 | 3000 | 5.43 | 0.75 | 0.98 | 4.52 | 3.33 | 32.88 | 20.88 | 35.28 | 23.28 | 12 |
| 3/4×18 | 3000 | 6.33 | 0.88 | 0.98 | 4.52 | 3.33 | 44.88 | 26.88 | 47.28 | 29.28 | 18 |
| 7/8×12 | 4000 | 8.1 | 0.88 | 1.13 | 5.19 | 3.78 | 34.25 | 22.25 | 37 | 25 | 12 |
| 7/8×18 | 4000 | 9.95 | 1 | 1.13 | 5.19 | 3.78 | 46.25 | 28.25 | 49 | 31 | 18 |
| 1×6 | 5000 | 9.33 | 1 | 1.25 | 5.84 | 4.25 | 23.63 | 17.63 | 26.69 | 20.69 | 6 |
| 1×12 | 5000 | 11.93 | 1 | 1.25 | 5.84 | 4.25 | 35.63 | 23.63 | 38.69 | 26.69 | 12 |
| 1×18 | 5000 | 14 | 1 | 1.25 | 5.84 | 4.25 | 47.63 | 29.63 | 50.69 | 32.69 | 18 |
| 1×24 | 5000 | 17.25 | 1.25 | 1.25 | 5.84 | 4.25 | 59.63 | 35.63 | 62.69 | 38.69 | 24 |
| 1.1/4×12 | 6500 | 20.58 | 1.25 | 1.5 | 7.22 | 5.13 | 37.94 | 25.94 | 41.56 | 29.56 | 12 |
| 1.1/4×18 | 6500 | 23 | 1.25 | 1.5 | 7.22 | 5.13 | 49.94 | 31.94 | 53.56 | 35.56 | 18 |
| 1.1/4×24 | 6500 | 27 | 1.5 | 1.5 | 7.22 | 5.13 | 61.94 | 37.94 | 65.56 | 41.56 | 24 |
| 1.1/2×12 | 7500 | 27.5 | 1.5 | 1.88 | 8.34 | 5.75 | 40.94 | 28.94 | 43.44 | 32.44 | 12 |
| 1.1/2×18 | 7500 | 31 | 1.5 | 1.88 | 8.34 | 5.75 | 52.96 | 34.94 | 56.44 | 38.44 | 18 |
| 1.1/2×24 | 7500 | 37.5 | 1.5 | 1.88 | 8.34 | 5.75 | 64.94 | 40.94 | 68.44 | 44.44 | 24 |
