The sturdy Eye Ends provide a robust loop that can be easily attached to Shackles, Swivels, or other Hardware, ensuring that your equipment remains securely tensioned.

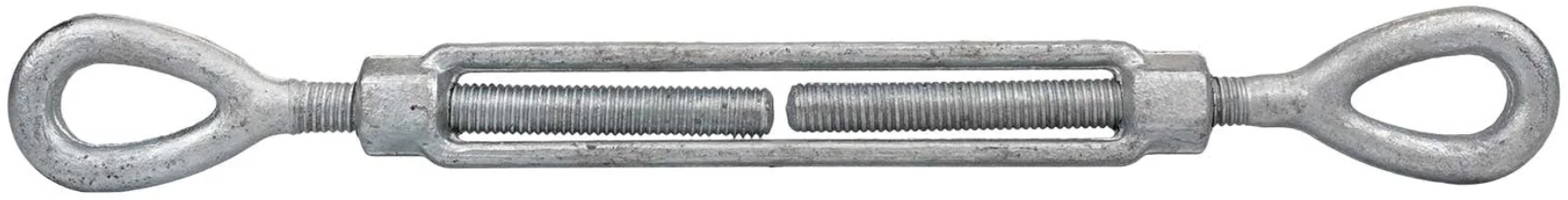

US Type Drop Forged Eye & Eye Type Turnbuckle
Product Features:
Meets the design requirements of US Federal Specifications.
End fittings are Quenched and Tempered, bodies heat treated by normalizing.
Turnbuckles recommended for straight or in-line pulls only.
Proof tested to 2 x WLL and Minimum Break Force is 5 x WLL.
Excellent Fatigue Rating.
Certified for Lifting.
| Thread Dia.& Take Up (in.) | Working Load Limit (lbs.) | Weight Each (lbs.) | Dimensions (in.) | ||||||||

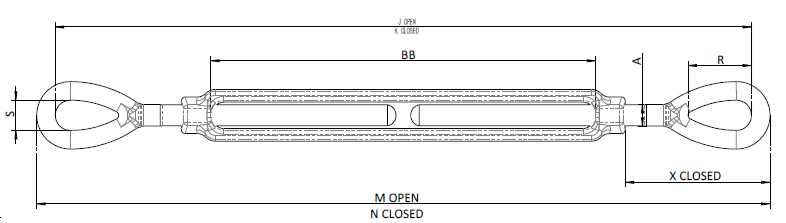

| A | J Open | K Closed | M Open | N Closed | R | S | X Closed | BB | |||
| 1/4X4 | 500 | 0.29 | 0.25 | 11.94 | 7.94 | 12.38 | 8.38 | 0.81 | 0.34 | 1.76 | 4.07 |
| 5/16X4-1/2 | 800 | 0.48 | 0.31 | 13.92 | 9.42 | 14.48 | 9.98 | 0.95 | 0.44 | 2.20 | 4.58 |
| 3/8X6 | 1200 | 0.75 | 0.38 | 17.56 | 11.56 | 18.24 | 12.24 | 1.13 | 0.53 | 2.48 | 6.10 |
| 1/2X6 | 2200 | 1.72 | 0.50 | 19.94 | 13.94 | 20.82 | 14.82 | 1.41 | 0.71 | 3.56 | 6.03 |
| 1/2X12 | 2200 | 2.63 | 0.50 | 32.23 | 20.23 | 33.11 | 21.11 | 1.41 | 0.71 | 3.54 | 12.36 |
| 5/8X6 | 3500 | 2.75 | 0.63 | 21.72 | 15.72 | 22.72 | 16.72 | 1.80 | 0.88 | 4.35 | 6.03 |
| 5/8X12 | 3500 | 4.12 | 0.63 | 34.06 | 22.06 | 35.06 | 23.06 | 1.80 | 0.88 | 4.34 | 12.39 |
| 3/4X6 | 5200 | 4.22 | 0.75 | 23.24 | 17.24 | 24.50 | 18.50 | 2.09 | 1.00 | 5.12 | 6.13 |
| 3/4X12 | 5200 | 6.12 | 0.75 | 35.64 | 23.64 | 36.90 | 24.90 | 2.09 | 1.00 | 5.09 | 12.59 |
| 3/4X18 | 5200 | 7.83 | 0.75 | 47.64 | 29.64 | 48.90 | 30.90 | 2.09 | 1.00 | 5.12 | 18.53 |
| 7/8X12 | 7200 | 8.83 | 0.88 | 36.70 | 24.70 | 38.20 | 26.20 | 2.38 | 1.25 | 5.79 | 12.16 |
| 7/8X18 | 7200 | 11.50 | 0.88 | 49.17 | 31.17 | 50.67 | 32.67 | 2.38 | 1.25 | 5.79 | 18.63 |
| 1X6 | 10000 | 9.62 | 1.00 | 26.24 | 20.24 | 28.00 | 22.00 | 3.00 | 1.43 | 6.50 | 6.18 |
| 1X12 | 10000 | 13.00 | 1.00 | 38.24 | 26.24 | 40.00 | 28.00 | 3.00 | 1.43 | 6.50 | 12.18 |
| 1X18 | 10000 | 16.30 | 1.00 | 50.24 | 32.24 | 52.00 | 34.00 | 3.00 | 1.43 | 6.50 | 18.18 |
| 1X24 | 10000 | 20.20 | 1.00 | 62.84 | 38.84 | 64.60 | 40.60 | 3.00 | 1.43 | 6.47 | 24.84 |
| 1-1/4X12 | 15200 | 19.90 | 1.25 | 42.14 | 30.14 | 44.38 | 32.38 | 3.59 | 1.82 | 8.49 | 12.06 |
| 1-1/4X18 | 15200 | 23.80 | 1.25 | 54.14 | 36.14 | 56.38 | 38.38 | 3.59 | 1.82 | 8.49 | 18.06 |
| 1-1/4X24 | 15200 | 27.80 | 1.25 | 66.70 | 42.70 | 68.94 | 44.94 | 3.59 | 1.82 | 8.49 | 24.62 |
| 1-1/2X12 | 21400 | 28.70 | 1.50 | 44.24 | 32.24 | 46.74 | 34.74 | 4.09 | 2.12 | 9.46 | 12.32 |
| 1-1/2X18 | 21400 | 34.10 | 1.50 | 56.24 | 38.24 | 58.74 | 40.74 | 4.09 | 2.12 | 9.46 | 18.32 |
| 1-1/2X24 | 21400 | 39.60 | 1.50 | 68.86 | 44.86 | 71.36 | 47.36 | 4.09 | 2.12 | 9.46 | 24.94 |
| 1-3/4X18 | 28000 | 50.70 | 1.75 | 57.38 | 39.38 | 60.38 | 42.38 | 4.65 | 2.38 | 9.97 | 18.37 |
| 1-3/4X24 | 28000 | 58.20 | 1.75 | 69.38 | 45.38 | 72.38 | 48.38 | 4.65 | 2.38 | 9.97 | 24.37 |
| 2X24 | 37000 | 83.50 | 2.00 | 75.68 | 51.68 | 79.18 | 55.18 | 5.81 | 2.69 | 13.03 | 24.48 |
| 2-1/2X24 | 60000 | 149.00 | 2.50 | 79.18 | 55.18 | 83.18 | 59.18 | 6.49 | 3.12 | 13.76 | 24.60 |
| 2-3/4X24 | 75000 | 174.00 | 2.75 | 81.34 | 57.34 | 85.84 | 61.84 | 7.00 | 3.25 | 15.09 | 24.6 |
