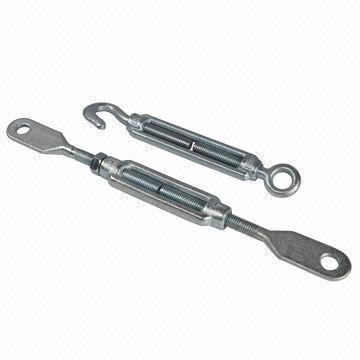

DIN1480 Turnbuckle with Plane Ends
Brand: VENIT/OEM
DIN1480 Turnbuckle with flat end is easy to install and use due to its simple and compact size and lightweight design making it easy to transport and store.
Product Details
DIN1480 Turnbuckle with Plane Ends
| Size | L1 | L2 | L3 | h | φ | b | ‘OC’kg/per100 |
| M5 | 70 | 62 | 58 | 5 | 8 | 7 | 4.6 |
| M6 | 110 | 87 | 80 | 7 | 9 | 8.5 | 9.3 |
| M8 | 110 | 95 | 84 | 8 | 10 | 11 | 16.6 |
| M10 | 125 | 118 | 105 | 9.5 | 15 | 13.5 | 30.2 |
| M12 | 125 | 125 | 115 | 11 | 17 | 15.5 | 41.6 |
| M14 | 140 | 140 | 121 | 13.5 | 18 | 18.5 | 61.7 |
| M16 | 170 | 164 | 150 | 14 | 22 | 20 | 92.5 |
| M20 | 200 | 196 | 163 | 17 | 24 | 21.5 | 168.5 |
| M22 | 220 | 214 | 185 | 19 | 27 | 26 | 223 |
| M24 | 255 | 236 | 205 | 21 | 27 | 26 | 302 |
| M27 | 255 | 264 | 230 | 23 | 31 | 33 | 453 |
| M33 | 255 | 292 | 242 | 25 | 39 | 36 | 545 |
| M36 | 295 | 319 | 270 | 28 | 43 | 44 | 806 |
