Brand: VENIT/OEM
The forged construction of the DIN1480 Turnbuckle provides enhanced resistance to wear and tear, ensuring long-lasting performance and reduced maintenance costs.

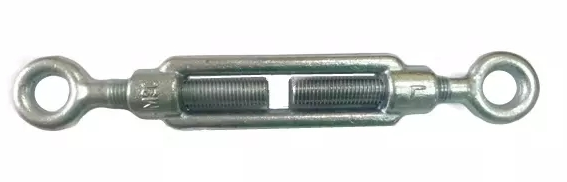

DIN1480 Forged Eye & Eye Turnbuckle
Product Features:
Type: Eye & Hook, Hook & Hook, Eye & Eye
Process: Drop Forged
Material: Q235
Finish: Electric Galvanized, Hot Dip
Galvanized
Special specifications and marks can be made according to customer’s requirement
| Dia. | Permissible Load | Weight Peso | Dimension | |||||||
| 11 | m | 12 | b | di | da | i | ||||
| mm | kg | N | kg/100pcs | mm | mm | mm | mm | mm | mm | mm |
| M6 M8 M10 M12 M16 M20 M24 M30 M32 M36 M38 | 230 418 663 948 1804 2752 3996 6371 6585 9276 9572 | 2250 4100 6500 9300 17700 27000 39200 62500 64600 91000 93900 | 7.8 14.8 29.4 36.3 91 156 325 415 595 745 1076 | 110 110 125 125 170 200 255 255 295 295 330 | 10 14 20 21 27 34 39 45 55 55 63 | 60 60 65 75 100 115 140 145 160 160 185 | 53 55 60 70 90 100 130 130 150 150 170 | 10 12 14 18 22 25 28 35 36.5 44 42 | 20 26 30.5 37.5 48 51 66 83 88 104 104 | 4.5 6.5 8 10.5 13 20 27 31 33 40 49 |
