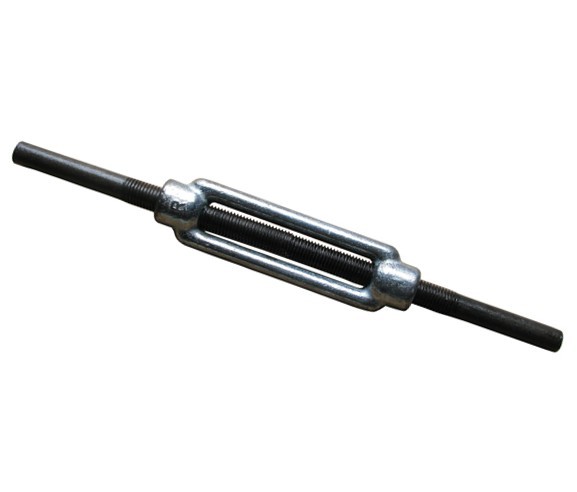

DIN1480 Forged Body Turnbuckles Stub End
Brand: VENIT/OEM
Our Forged Body Turnbuckles are crafted using precision techniques and superior materials to ensure they withstand the rigorous demands of industrial and marine applications.
Product Details
DIN1480 Forged Body Turnbuckles Stub End
| Size(mm) | Dimensions(mm) | Weight 100pcs(kg) | ||
| A | H | I | ||
| M6 | 110 | 60 | 120 | 10 |
| M8 | 110 | 65 | 120 | 16 |
| M10 | 125 | 75 | 150 | 30 |
| M12 | 125 | 75 | 150 | 40 |
| M14 | 140 | 90 | 165 | 62 |
| M16 | 170 | 100 | 200 | 96 |
| M20 | 200 | 120 | 220 | 174 |
| M22 | 220 | 120 | 220 | 213 |
| M24 | 255 | 150 | 260 | 274 |
| M27 | 255 | 160 | 265 | 388 |
| M30 | 255 | 160 | 260 | 420 |
| M36 | 295 | 180 | 300 | 720 |
| M42 | 330 | 200 | 350 | 1070 |
| M48 | 355 | 220 | 380 | 1790 |
| M56 | 355 | 230 | 380 | 2000 |
