DIN1478 Turnbuckle | Close Body Eye & Eye Turnbuckle

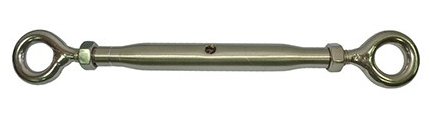

DIN1478 Close Body Eye & Eye Turnbuckle

Brand: VENIT/OEM

The DIN1478 Close Body Eye & Eye Turnbuckle features a close body design that maximizes strength and minimizes overall length, making it ideal for applications where space is limited.

Product Details

DIN1478 Close Body Eye & Eye Turnbuckle

Size(mm)	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	J(mm)	K(mm)	L(mm)	M(mm)	N(mm)	O(mm)	WLL(T)
6	6	105	15	11	5	6	9	6	21	175	305	0.2
8	8	127	18	13	6	6	9	6.5	21	203	305	0.32
10	10	152	21	16	8	8	11	8	21	235	349	0.5
12	12	229	25	19	9	9	19	10	35	343	524	0.7
16	16	229	27	22	11	9	18	12	51	361	550	1.2
20	20	229	34	28	11	11	22	16	48	387	550	1.5
22	22	305	38	32	13	13	22	20	60	476	702	2.2
24	24	356	42	32	13	14	25	22	65	556	822	5
27	27	356	45	41	13	14	32	22	65	559	822	5
33	33	381	51	41	14	19	32	24	76	604	872	7
36	36	381	54	44	16	19	38	27	76	610	872	10
39	39	407	57	44	16	20	38	32	90	670	949	10
45	45	407	70	51	17	25	47	36	111	705	959	13
48	48	407	76	70	19	25	51	42	121	743	977	17
50	50	500	76	60	19.5	32	51	42	121	900	1300	17
