VNT331 G80 Eye Type Winged Hook
Forged super alloy steel -Quenched and Tempered
Suitable for EN818-2 G80 chain
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection
Surface finish:Powder plastified
Color code: Red RAL3020 / Yellow RAL1003
Ultimate load is 4 times the Working Load Limit.
Above Working Load Limit is based on side pull.

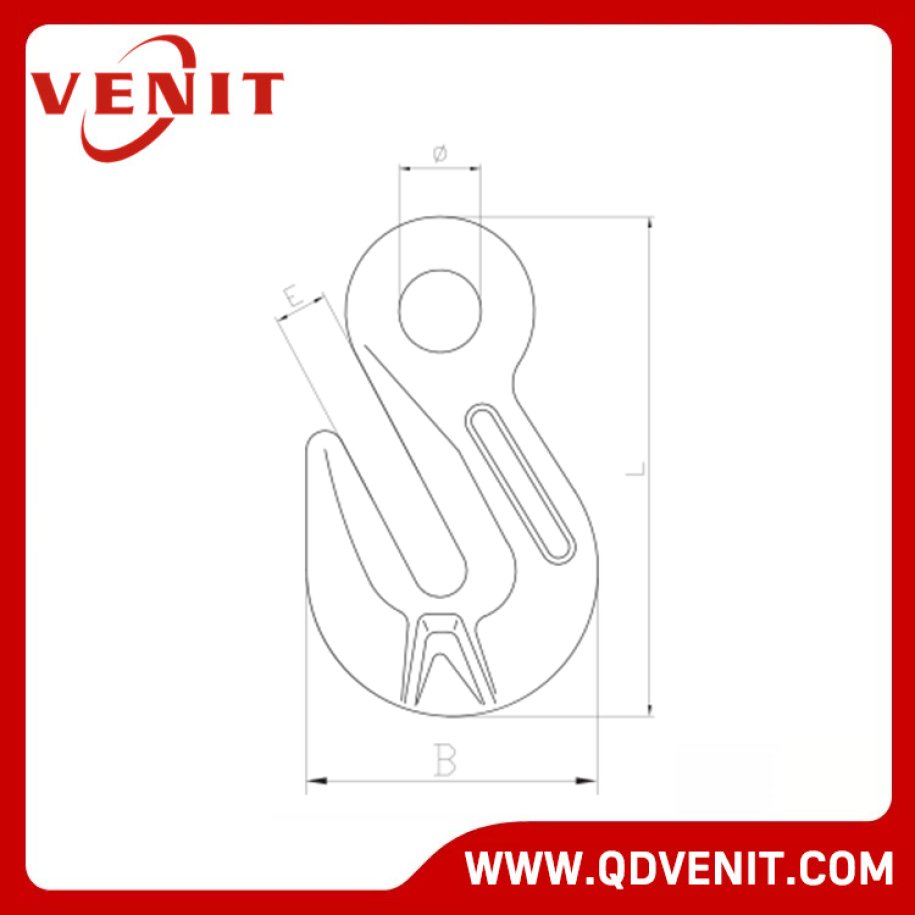

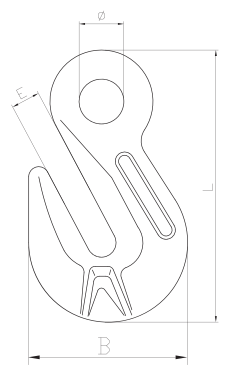

| ITEM.NO. | WEIGHT/kg | WLL/T | B.L/T | Φ±2 | E±2 | D±2 | B±3 | L±3 |
| VNT331-06 | 0.25 | 1.12 | 4.48 | 13 | 8 | 8 | 45 | 76.5 |
| VNT331-7/8 | 0.4 | 2 | 8 | 16 | 11 | 9.5 | 63 | 106 |
| VNT331-10 | 0.6 | 3.15 | 12.6 | 20 | 13 | 12 | 79 | 126 |
| VNT331-13 | 1.2 | 5.3 | 21.2 | 25 | 16 | 15 | 100 | 156 |
| VNT331-16 | 2.7 | 8 | 32 | 28.5 | 20 | 19 | 122 | 193 |
| VNT331-18/20 | 4.3 | 12.5 | 50 | 36 | 25 | 20 | 150.5 | 226 |
| VNT331-22 | 6.4 | 15 | 60 | 42 | 26 | 27 | 169 | 269 |
