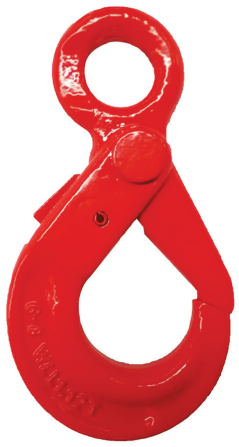

VNT008 G80 US Type Eye Self-locking Hook
Forged super alloy steel - Quenched and Tempered.
Individually proof tested at 2.5 times Working Load Limit.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Breaking test.
100% Magnaflux Crack Detection.
With latch.
Surface finish: Power plastified
Colour: Yellow or Red RALcode: RAL1003 or RAL3020.
Other colour is available as per request.
Positive lock latch is self-locking when hook is loaded.
Ultimate load is 4 times the Working Load Limit.

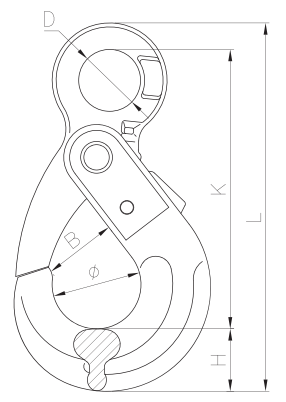

| Item No. | Weight/kg | WLL/T | BL/T | B±1.5 | D±1.5 | H±1 | K±2 | L±3 | Φ±2 |
| VNT008-6 | 0.48 | 1.2 | 4.8 | 29 | 19.8 | 20 | 100 | 130 | 34 |
| VNT008-7/8 | 0.98 | 2 | 8 | 35 | 25 | 29 | 132 | 173 | 42 |
| VNT008-10 | 1.85 | 3.2 | 12.8 | 42 | 32.5 | 31 | 171 | 217 | 55 |
| VNT008-13 | 3.76 | 5.4 | 21.6 | 55 | 42 | 41 | 213 | 272 | 65 |
| VNT008-16 | 5.3 | 8.2 | 32.8 | 66 | 56 | 52 | 256 | 330 | 76 |
