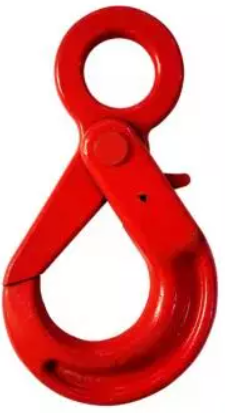

VNT081 G80 European Type Eye Selflock Hook
Forged or welded super alloy steel.
Suitable for use with G80 chain.
Individually proof tested at 2.5 times Working Load Limit.
100% Magnaflux Crack Detection.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Strict break load test.
Surface finish: Power plastified Colour: Yellow or Red RALcode: RAL1003 or RAL3020.
All load pin are 100% individually inspected and tested.
Ultimate load is 4 times the Working Load Limit.
| ITEM NO. | WEIGHT/KG | WLL/T | B.L/T | M | R | D | R | H | E |
| VNT081-06 | 0.5 | 1.12 | 4.48 | 22 | 110.5 | 10 | 34 | 19.5 | 28 |
| VNT081-7/8 | 0.8 | 2 | 8 | 25 | 136 | 12 | 46 | 24 | 34 |
| VNT081-10 | 1.55 | 3.15 | 12.6 | 32 | 171 | 15 | 56 | 28.5 | 44 |
| VNT081-13 | 3.2 | 5.3 | 21.2 | 40.5 | 208.5 | 19.5 | 69 | 40 | 52 |
| VNT081-16 | 5.74 | 8 | 32 | 56 | 257.5 | 22 | 86 | 50.5 | 60 |
| VNT081-20 | 8.5 | 12.5 | 50 | 64.5 | 275 | 27 | 100 | 55 | 81 |
| VNT081-22 | 13 | 15 | 60 | 70 | 320 | 30 | 98 | 67 | 82 |
| VNT081-26 | 18 | 21.2 | 84.8 | 80 | 363 | 34 | 110 | 75 | 110 |
| VNT081-32 | 44.5 | 31.5 | 126 | 105 | 472 | 45 | 166 | 97 | 168 |

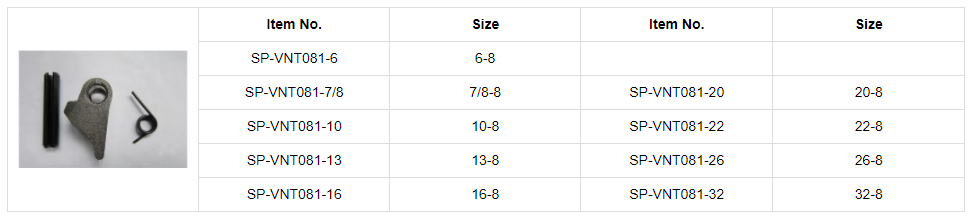

SP-VNT081 TRIGGER PARTS
