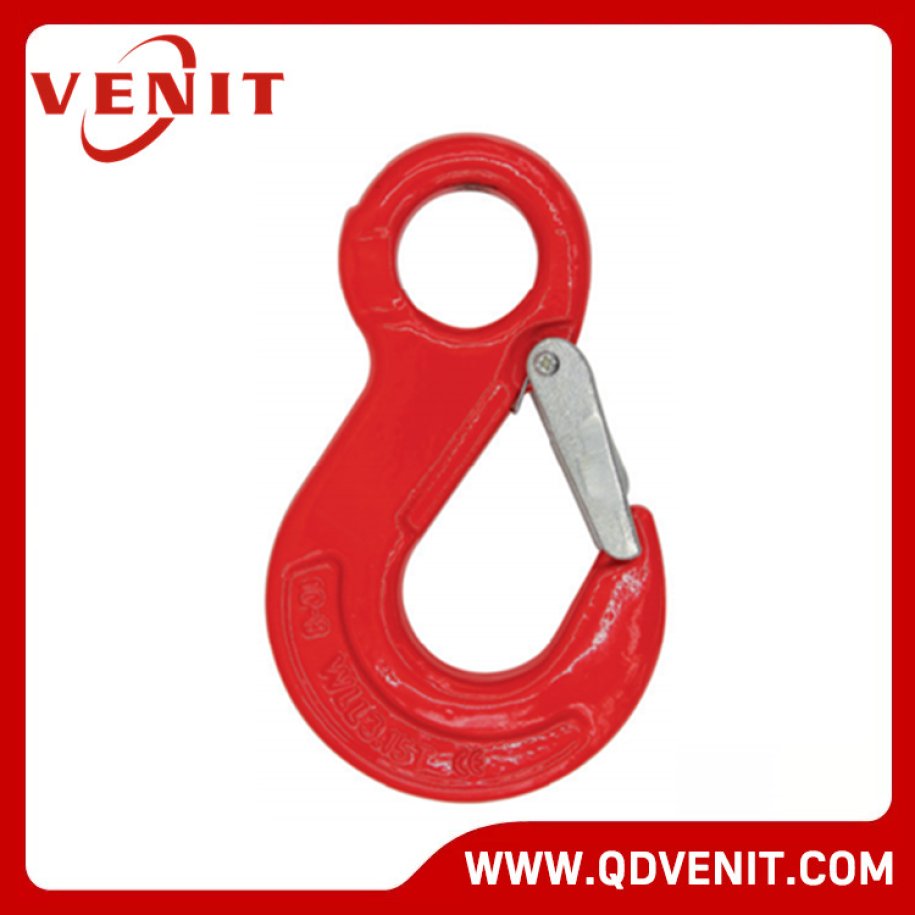

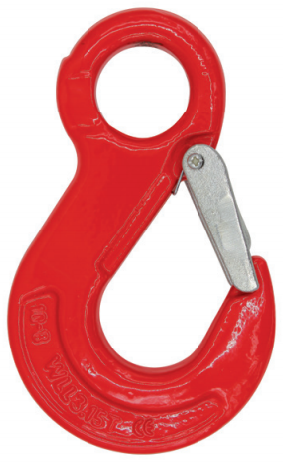

VNT302 G80 Eye Sling Hook with Latch
Forged super alloy steel - Quenched and Tempered.
Individually proof tested at 2.5 times Working Load Limit.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Breakage test.
100% Magnaflux Crack Detection.
With safety latch.
Surface finish: Power plastified
Colour: Yellow or Red RALcode: RAL1003 or RAL3020.
Ultimate load is 4 times the Working Load Limit.
| ITEM NO. | WEIGHT/KG | WLL/T | B.L/T | Φ1±1 | Φ2±1 | D±1 | E±1.5 | F±1 | H±1 | L±2 |
| VNT302-06 | 0.35 | 1.12 | 4.48 | 20 | 21 | 9 | 25 | 14.5 | 23.2 | 121.5 |
| VNT302-7/8 | 0.61 | 2 | 8 | 25 | 23 | 11 | 24 | 19 | 32 | 147.5 |
| VNT302-10 | 1.08 | 3.15 | 12.6 | 38 | 29 | 15 | 32 | 23.5 | 35 | 184 |
| VNT302-13 | 2 | 5.3 | 21.2 | 43 | 36 | 19 | 38 | 27.5 | 42.5 | 225 |
| VNT302-16 | 3.75 | 8 | 32 | 50 | 45 | 23 | 48 | 35.5 | 54 | 265 |
