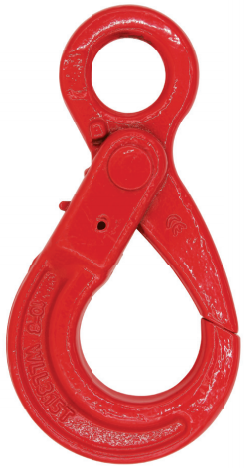

VNT737 G80 Improved Eye Selflock Hook
Forged or welded super alloy steel.
Suitable for use with G80 chain.
Individually proof tested at 2.5 times Working Load Limit.
100% Magnaflux Crack Detection.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Strict break load test.
Surface finish: Power plastified Colour: Yellow or Red RALcode: RAL1003 or RAL3020. Other colour is available as per request.
All load pin are 100% individually inspected and tested.
Ultimate load is 4 times the Working Load Limit.

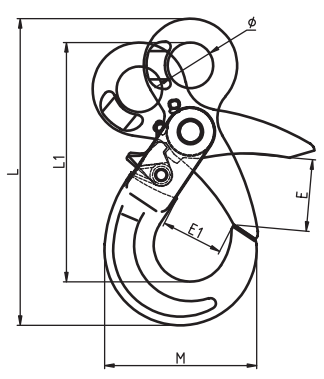

| Item No. | Size | Weight/kg | WLL/T | BL/T | Φ±1.5 | E±2 | E1±2 | L1±3 | L±3 |
| VNT737-6 | 6 | 0.5 | 1.12 | 4.48 | 21 | 35 | 28 | 110 | 140 |
| VNT737-7/8 | 7/8 | 0.88 | 2 | 8 | 25 | 40 | 35 | 136 | 175 |
| VNT737-10 | 10 | 1.58 | 3.15 | 12.6 | 34.5 | 48 | 45 | 168 | 213 |
| VNT737-13 | 13 | 3.0 | 5.3 | 21.2 | 40 | 65 | 52.5 | 207 | 268 |
| VNT737-16 | 16 | 5.9 | 8 | 32 | 50 | 65 | 63 | 254 | 332 |
| VNT737-20 | 20 | 7.0 | 12.5 | 50 | 64.5 | 85 | 85 | 278 | 360 |
| VNT737-22 | 22 | 12.3 | 15 | 60 | 72 | 80 | 76 | 319 | 415 |
| VNT737-26 | 26 | 20 | 21.2 | 84.8 | 80 | 120 | 96 | 362 | 472 |
| VNT737-32 | 32 | 44 | 31.5 | 126 | 105 | 140 | 133 | 470 | 614 |
