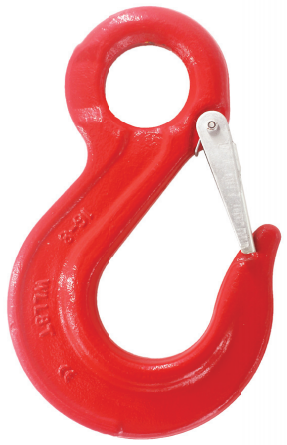

VNT013 G80 Eye Sling Hook with Cast Latch
Forged super alloy steel - Quenched and Tempered.
Suitable for EN818-2 G80 chain.
Individually proof tested at 2.5 times Working Load Limit.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Breakage test.
100% Magnaflux Crack Detection.
With cast latch.
Surface finish: Power plastified
Colour: Yellow or Red RALcode: RAL1003 or RAL3020.
Ultimate load is 4 times the Working Load Limit.

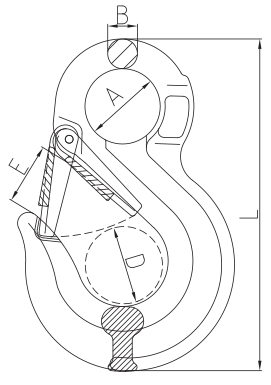

| ITEM NO. | WEIGHT/KG | WLL/T | B.L/T | B±1.5 | E±2 | D±2 | A±3 | L±2 |
| VNT013-06 | 0.3 | 1.12 | 4.48 | 9 | 21.5 | 20 | 20 | 108 |
| VNT013-7/8 | 0.4 | 2 | 8 | 11 | 27.5 | 24 | 25 | 133 |
| VNT013-10 | 0.9 | 3.15 | 12.6 | 15 | 27.2 | 38 | 38 | 167 |
| VNT013-13 | 2.2 | 5.3 | 21.2 | 19 | 38.5 | 51 | 43 | 213 |
| VNT013-16 | 3.2 | 8 | 32 | 23 | 42 | 62 | 50 | 255 |
| VNT013-20 | 5.8 | 12.5 | 50 | 24 | 44.6 | 74.8 | 63 | 305 |
| VNT013-22 | 9.2 | 15 | 60 | 32 | 70 | 68 | 62 | 348 |
| VNT013-26 | 13 | 21.2 | 84.8 | 35 | 84 | 84 | 64 | 394 |
| VNT013-32 | 18.5 | 31.5 | 126 | 37 | 102 | 100 | 88 | 480 |

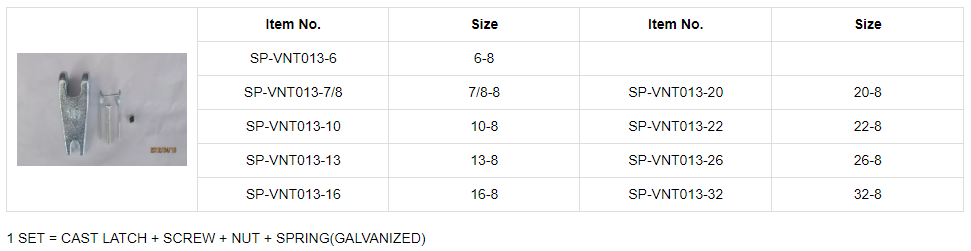

SP-VNT013 CAST LATCH KITS
