Brand: VENIT/OEM

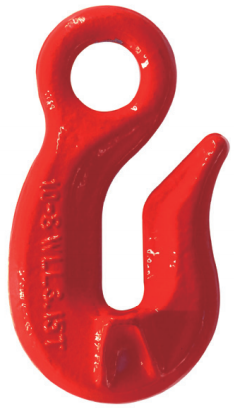

VNT141 G80 Deep Throat Eye Shortening Cradle Grab Hook with Wings
Forged super alloy steel - Quenched and Tempered.
Suitable for EN818-2 G80 chain.
Individually proof tested at 2.5 times Working Load Limit.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Breakage test.
100% Magnaflux Crack Detection.
Surface finish: Power plastified
Colour: Yellow or Red RALcode: RAL1003 or RAL3020. Other colour is available as per request.
Ultimate load is 4 times the Working Load Limit.
Above Working Load Limit is based on side pull.

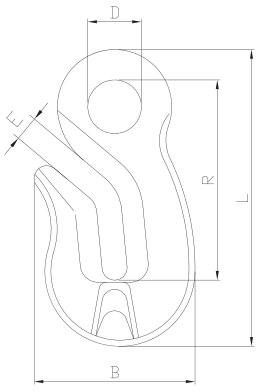

ITEM NO. | WEIGHT/KG | WLL/T | B.L/T | D±1 | E±0.3 | B±1.2 | R±1.5 | L±1.5 |
VNT141-6 | 0.16 | 1.12 | 4.48 | 15 | 7 | 45 | 56 | 83 |
VNT141-7/8 | 0.35 | 2 | 8 | 16 | 9.6 | 52 | 74.3 | 106.5 |
VNT141-10 | 0.75 | 3.15 | 12.6 | 21 | 13 | 66 | 84.5 | 124.5 |
VNT141-13 | 1.5 | 5.3 | 21.2 | 26 | 16.5 | 96 | 114 | 170 |
