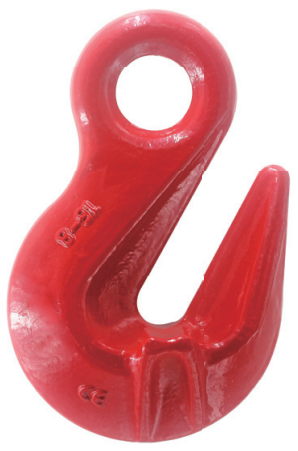

VNT085 G80 Eye Shortening Cradle Grab Hook with Wings


Forged super alloy steel - Quenched and Tempered.

Suitable for EN818-2 G80 chain.

Individually proof tested at 2.5 times Working Load Limit.

Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.

Breakage test.

100% Magnaflux Crack Detection.

Surface finish: Power plastified

Colour: Yellow or Red RALcode: RAL1003 or RAL3020. Other colour is available as per request.

Ultimate load is 4 times the Working Load Limit.

Above Working Load Limit is based on side pull.

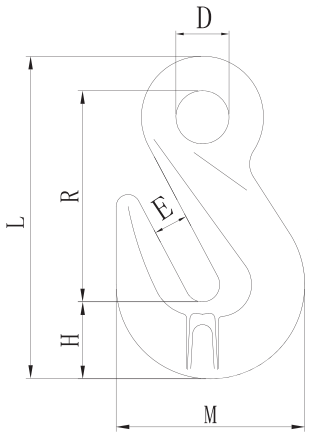

ITEM NO.WEIGHT/KGWLL/TB.L/TE±0.5D±1H±1R±2L±2M±2
VNT085-060.141.124.48813.517.951.475.345.5
VNT085-7/80.2452810.8182061.591.253
VNT085-100.653.1512.61320298012271
VNT085-131.395.321.216.52642.899.715890
VNT085-162.28322030.547.7104169113
VNT085-204.612.5502537.556140219143
VNT085-228.21560284468165259160
VNT085-269.821.284.8304477188.8298171
VNT085-3219.431.5126385795228361229
