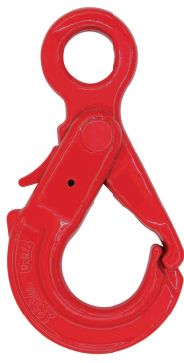

VNT077 G80 Special Eye Self-locking Hook
Forged super alloy steel - Quenched and Tempered.
Suitable for use with EN818-2 G80 chain.
Individually proof tested at 2.5 times Working Load Limit.
100% Magnaflux Crack Detection.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Strict break load test.
Surface finish: Power plastified Colour: Yellow or Red RALcode: RAL1003 or RAL3020. Other colour is available as per request.
Ultimate load is 4 times the Working Load Limit.

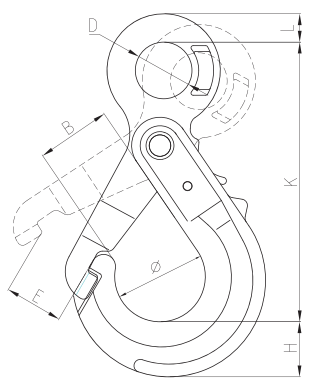

Item No. | Weight/kg | WLL/T | BL/T | B±1.5 | D±1.5 | E±2 | K±2 | H±1 | L±1 | Φ±2 |
VNT077-7/8 | 0.68 | 2 | 8 | 35 | 25 | 34 | 131 | 22 | 11 | 40 |
VNT077-10 | 1.3 | 3.15 | 12.6 | 43 | 32 | 42 | 161 | 26 | 14.5 | 50 |
VNT077-13 | 2.06 | 5.3 | 21.2 | 50 | 40 | 50 | 195.4 | 31 | 17 | 60 |
VNT077-16 | 3.73 | 8 | 32 | 61 | 50 | 70 | 238 | 38 | 23 | 72 |
