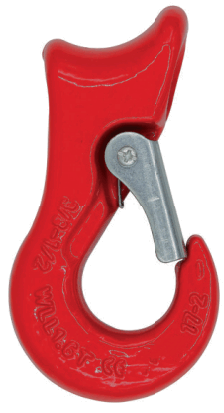

VNT072 G80 Sliding Eye Choker Hook
Forged super alloy steel - Quenched and Tempered.
Individually proof tested at 2.5 times Working Load Limit.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Breakage test.
100% Magnaflux Crack Detection.
Surface finish: Power plastified
Colour: Yellow or Red RALcode: RAL1003 or RAL3020.
Ultimate load is 5 times the Working Load Limit.

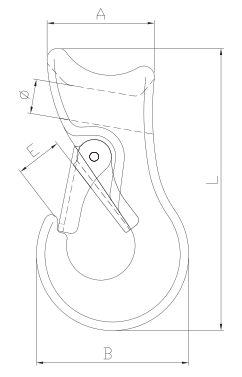

| ITEM NO. | WEIGHT/KG | WLL/T | B.L/T | Φ±1 | A±1.5 | B±1.5 | E±3 | L±2.5 |
| VNT072-3/8-1/2 | 0.68 | 1.6 | 8 | 17 | 50 | 71 | 18 | 132 |
| VNT072-5/8 | 1.21 | 2 | 10 | 22 | 63.5 | 79 | 20 | 151.3 |
| VNT072-3/4 | 1.99 | 3 | 15 | 28 | 69 | 103 | 26 | 170 |
| VNT072-1 | 4.18 | 5 | 25 | 32.5 | 85.7 | 135 | 33 | 213 |
