VNT065 G80 Italian Type Eye Shortening Grab Hook
Forged super alloy steel - Quenched and Tempered.
Suitable for EN818-2 G80 chain.
Individually proof tested at 2.5 times Working Load Limit.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Breakage test.
100% Magnaflux Crack Detection.
Surface finish: Power plastified
Colour: Yellow or Red RALcode: RAL1003 or RAL3020. Other colour is available as per request.
Ultimate load is 4 times the Working Load Limit.
Above Working Load Limit is based on side pull.

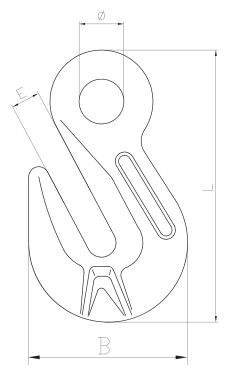

| ITEM NO. | WEIGHT/KG | WLL/T | B.L/T | Φ±1 | B±1.5 | E±0.5 | L±2 |
| VNT065-06 | 0.18 | 1.12 | 4.48 | 13.5 | 44 | 8 | 75.5 |
| VNT065-07 | 0.307 | 2 | 8 | 15 | 48.5 | 9 | 88 |
| VNT065-10 | 0.68 | 3.15 | 12.6 | 20 | 72 | 13 | 125 |
| VNT065-13 | 1.34 | 5.3 | 21.2 | 25 | 91 | 17 | 159 |
| VNT065-16 | 2.09 | 8 | 32 | 30 | 110 | 21 | 180 |
| VNT065-20 | 3.84 | 12.5 | 50 | 35 | 133.5 | 25 | 211 |
