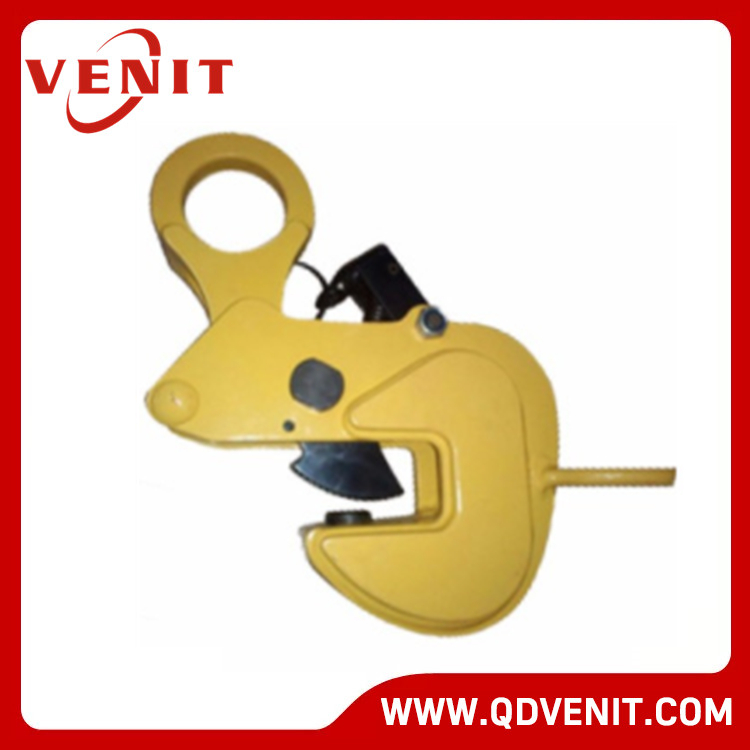

TMS Horizontal Clamp With Locking Device
Features:
Working Load Limited (WLL): 1 – 10T

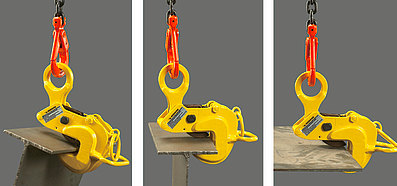

Used for horizontal lifting of steel plates, construction steel parts.
The clamp is made of high quality carbon steel.
No collision when the clamp is loaded.
The spring-load tightening lock mechanism assures a positive initial clamp force.
The handle makes it easy and safe to set and detach the clamp onto and from the work piece.
| Model | WLL | A | B | C | H | l-Beam recommended A | l-Beam recommended B | Weight |
| (TON) | (MM) | (MM) | (KG) | |||||
| TMS1 | 1 | 280 | 236 | 211 | 115 | 80-146 | 64-140 | 14 |
| TMS2 | 2 | 318 | 273 | 236 | 130 | 80-168 | 76-165 | 16 |
| TMS3 | 3 | 340 | 320 | 295 | 164 | 88-168 | 76-203 | 24 |
| TMS5 | 5 | 365 | 366 | 334 | 177 | 100-170 | 88-203 | 36 |
| TMS10 | 10 | 410 | 389 | 460 | 237 | 122-203 | 125-203 | 90 |
