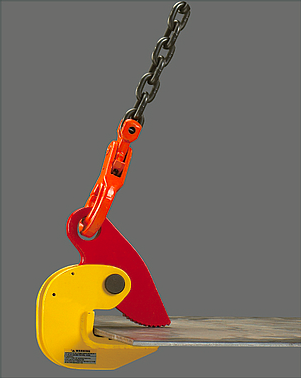

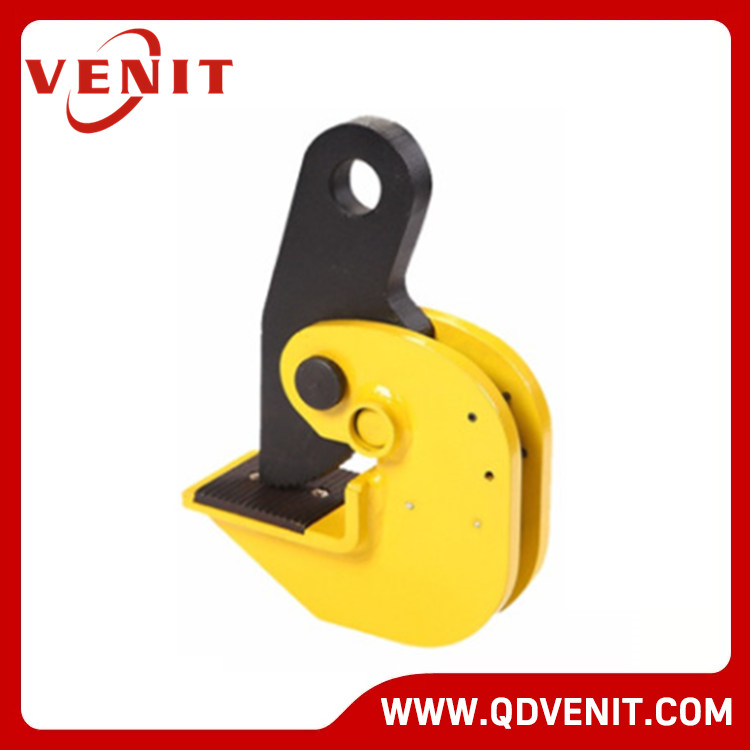

PDB Horizontal Plate Clamp
Features:
• Working Load Limited (WLL): 0.8 – 10T

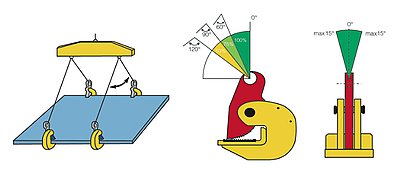

• Suitable for lifting and transport of steel plates in horizontal position.
• The clamp is made of high quality carbon steel.
• No collision when the clamp is loaded.
Application:
Model | WLL | Jaw Opening | Weight |
(TON) | (MM) | (KG) | |
PDB0.8 | 0.8 | 0-25 | 2.5 |
PDB1 | 1 | 0-30 | 3.5 |
PDB1.6 | 1.6 | 0-30 | 4 |
PDB2 | 2 | 0-40 | 5 |
PDB3.2 | 3.2 | 0-45 | 6 |
PDB4 | 4 | 0-50 | 6.5 |
PDB5 | 5 | 0-55 | 7.5 |
PDB6 | 6 | 0-65 | 10.5 |
PDB6(B) | 6 | 0-130 | 22 |
PDB8 | 8 | 0-100 | 22 |
PDB10 | 10 | 0-125 | 33 |
