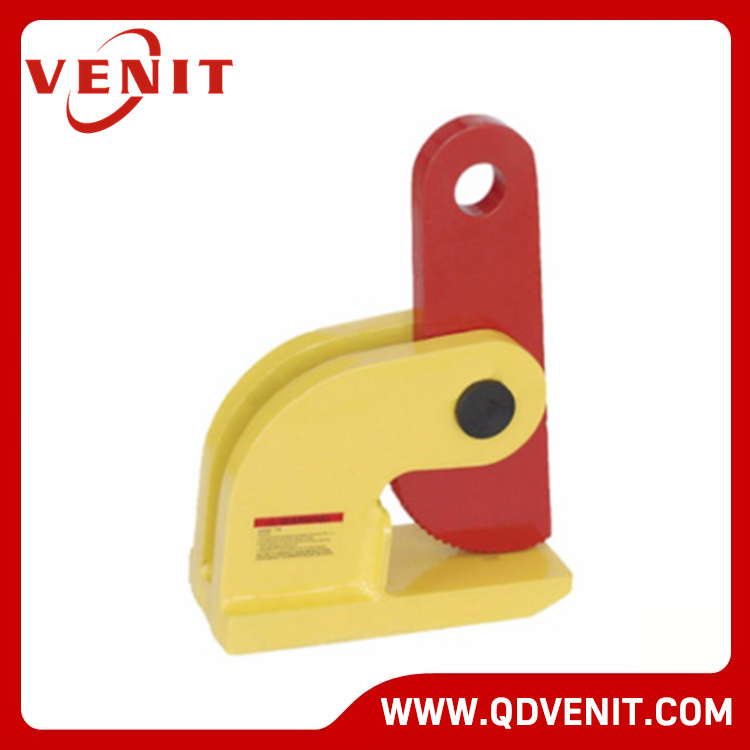

THK THKS Horizontal Plate Clamp
Features:
• Working Load Limited (WLL): 1 – 10T

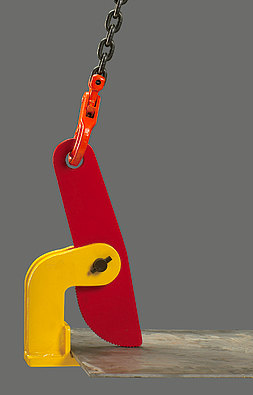

• Used for horizontal lifting steel plates.
• The clamp is in compact shape, relative light on weight, also with high lifting capacity.

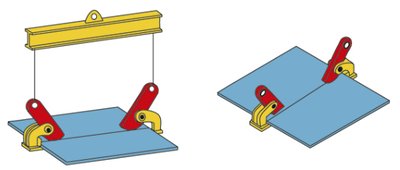

• The THK/THKS lifting clamps must always be used in pairs (or multiples thereof).
• THK with an enlarged jaw opening.
Model | WLL | Jaw Opening | Weight |
(TON) | (MM) | (KG) | |
THK1 | 1 | 0-100 | 7 |
THK1.5 | 1.5 | 0-100 | 7.5 |
THK2 | 2 | 0-100 | 13 |
THK3 | 3 | 0-100 | 13.5 |
THK4 | 4 | 0-100 | 17 |
THK5 | 5 | 0-100 | 19 |
THK10 | 10 | 0-100 | 22 |
Model | WLL | Jaw Opening | Weight |
(TON) | (MM) | (KG) | |
THKS0.5 | 0.5 | 0-35 | 2.4 |
THKS1 | 1 | 0-60 | 6 |
THKS1.5 | 1.5 | 0-60 | 6.5 |
THKS2 | 2 | 0-60 | 11 |
THKS3 | 3 | 0-60 | 11.5 |
THKS4 | 4 | 0-60 | 16 |
THKS5 | 5 | 0-60 | 17 |
THKS10 | 10 | 0-60 | 20 |
