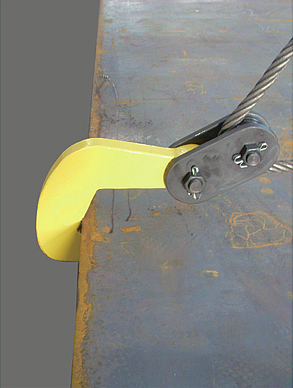

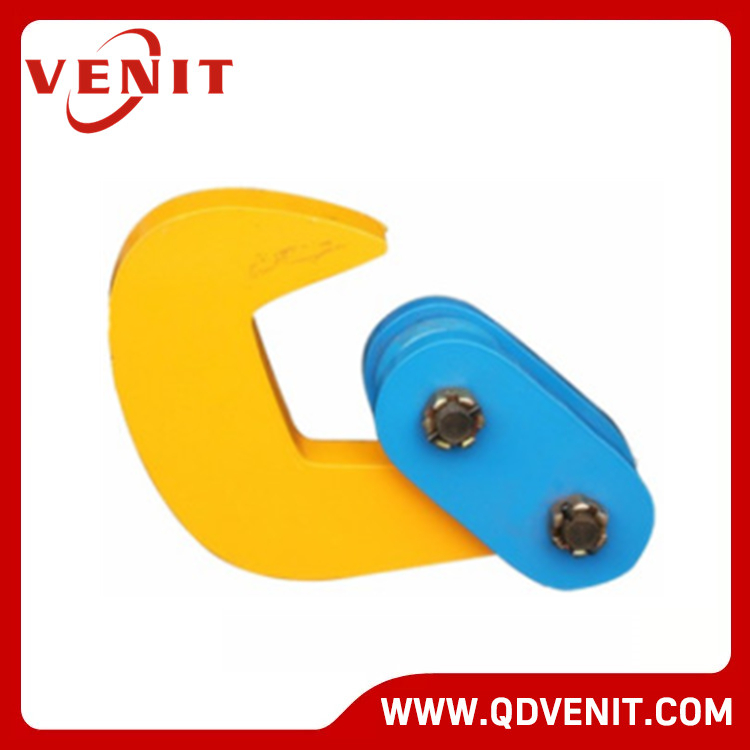

PDQ Single Steel Plate Clamp
Features:
• Working Load Limited (WLL): 1 – 10T
• Suitable for lifting single or multi pieces of steel plates.
• The clamp is made of high quality carbon steel.
• This clamp must be used with beam, and no collision when the clamp is loaded.
• Designed as roller at the top to avoid any damage on the wire rope.
• Automatic unloading.

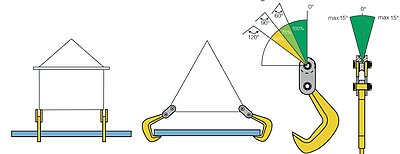

Application:
| Model | WLL | Jaw Opening | Weight |
| (TON) | (MM) | (KG) | |
| PDQ1 | 1 | 0-50 | 3 |
| PDQ2 | 2 | 0-60 | 5 |
| PDQ3.2 | 3.5 | 0-90 | 12 |
| PDQ5 | 5 | 0-120 | 17 |
| PDQ8 | 8 | 0-130 | 25 |
| PDQ10 | 10 | 0-150 | 30 |
