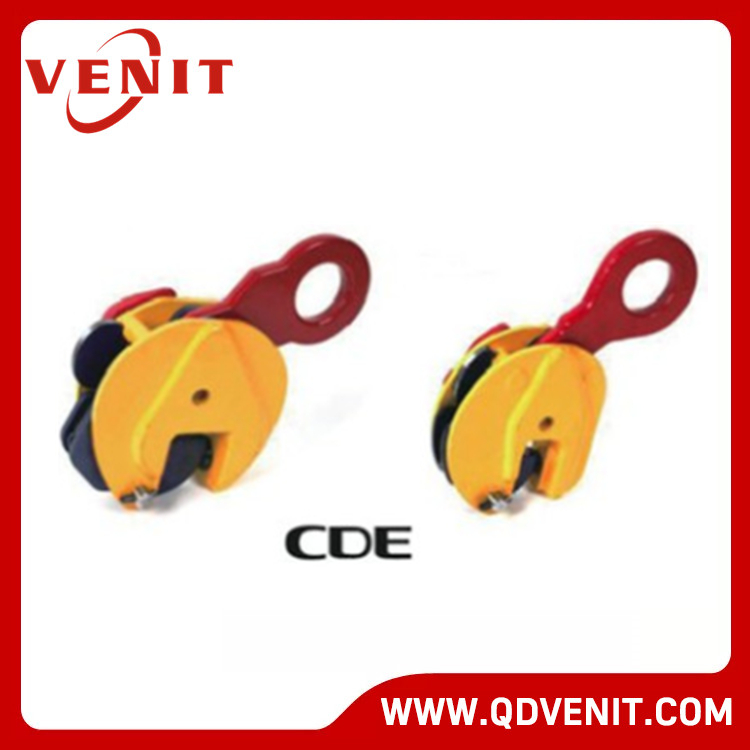

CDE Universal Plate Clamp
Features:
Working Load Limit (WLL): 0.8T – 16T

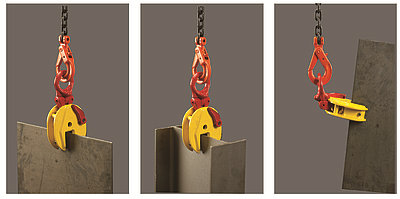

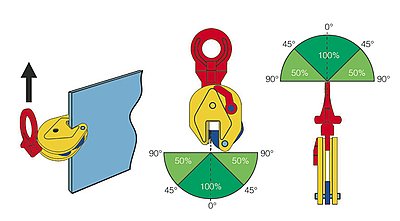

Used for lifting steel plate in all positions (horizontal, vertical, sidelong).
With articulated lifting shackle.
The clamp will be locked no matter it’s closed or open.
The clamp is made of high quality carbon steel.
Application:
Model | WLL | Jaw Opening | Weight |
(TON) | (MM) | (KG) | |
CDE0.8 | 0.8 | 0-15 | 2 |
CDE1 | 1 | 0-15 | 4 |
CDE1(B) | 1 | 0-20 | 5 |
CDE1.6 | 1.6 | 0-20 | 7 |
CDE2 | 2 | 0-25 | 8 |
CDE3.2 | 3.2 | 0-25 | 15 |
CDE3.2(B) | 3.2 | 0-30 | 15 |
CDE5 | 5 | 0-30 | 21 |
CDE5(B) | 5 | 0-50 | 23 |
CDE8 | 8 | 0-45 | 37 |
CDE12 | 12 | 50-90 | 50 |
CDE16 | 16 | 60-100 | 65 |
