Product Details

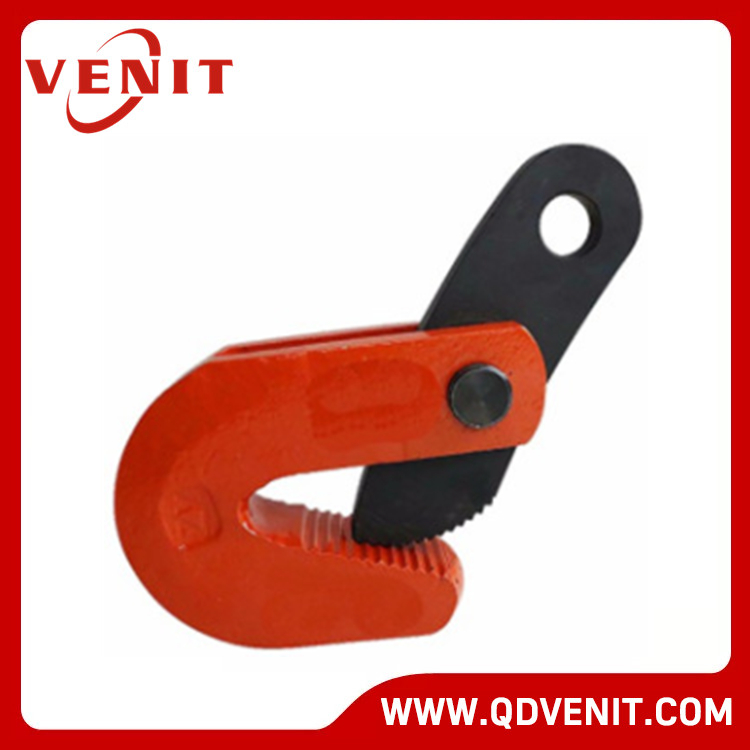

L Horizontal Plate Clamp
Features:
• Working Load Limited (WLL): 0.8 – 5T
• The clamp is made of high quality carbon steel.
• No collision when the clamp is loaded.

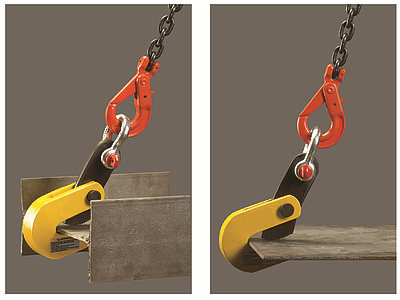

• Suitable for lifting and transport of steel plates, construction and profiled bars in horizontal position.
Application:
| Model | WLL | Jaw Opening | Weight |
| (TON) | (MM) | (KG) | |
| L0.8 | 0.8 | 0-15 | 2 |
| L1 | 1 | 0-20 | 4 |
| L1.6 | 1.6 | 0-25 | 6.5 |
| L2.5 | 2.5 | 0-30 | 11 |
| L2.5(B) | 2.5 | 25-50 | 11 |
| L3.2 | 3.2 | 0-40 | 12.5 |
| L3.2(B) | 3.2 | 30-60 | 12.5 |
| L5 | 5 | 0-50 | 19 |
| L5(B) | 5 | 50-80 | 20 |
