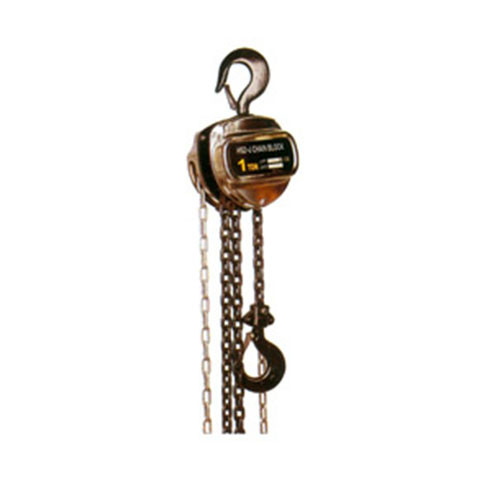

HMBJ Type Chain Blocks
Part No. | HMBJ0500 | HMBJ1000 | HMBJ1500 | HMBJ2000 | HMBJ3000 | HMBJ5000 | HMBJT100 | HMBJT200 | |
Rated load(T) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 | |
Standard lift(m) | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | |
Test load(T) | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 15 | 30 | |
Min.distance between two hooks(mm) | 258 | 274 | 347 | 396 | 486 | 616 | 700 | 1000 | |
Efforts required at capacity(N) | 221 | 304 | 343 | 314 | 343 | 382 | 392 | 392 | |
Diameter of load chain(mm) | 6 | 6 | 8 | 6 | 8 | 10 | 10 | 10 | |
No.Of load chains | 1 | 1 | 1 | 2 | 2 | 2 | 4 | 8 | |
Dimensions(mm) | A | 125 | 147 | 183 | 147 | 183 | 215 | 360.5 | 585 |
B | 111 | 126 | 141 | 126 | 141 | 163 | 163 | 191 | |
C | 30 | 35 | 38 | 41 | 47 | 52 | 64 | 82 | |
D | 134 | 154 | 192 | 154 | 192 | 224 | 224 | 224 | |
Net Weight(kg) | 8 | 10 | 16 | 14 | 24 | 36 | 68 | 156 | |
Extra weight per meter of extra lift(kg) | 1.8 | 1.8 | 2.4 | 2.7 | 3.8 | 5.3 | 9.8 | 19.6 | |
