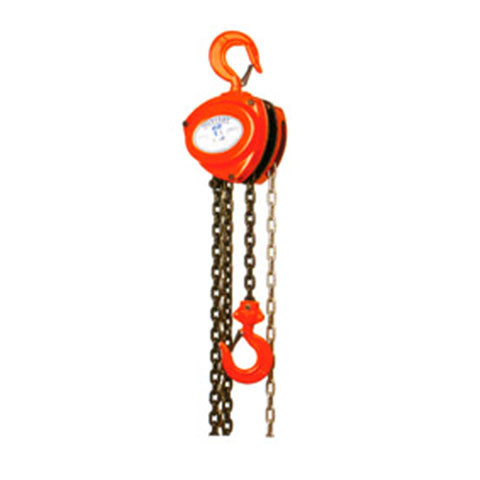

HMBA Type Chain Blocks
Part No. | HMBA0500 | HMBA1000 | HMBA1500 | HMBA2000 | HMBA3000 | HMBA5000 | HMBAT100 | HMBAT200 | |
Rated load(T) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 | |
Standard lift(m) | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | |
Test load(T) | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 15 | 30 | |
Efforts required at capacity(N) | 262 | 324 | 332 | 324 | 332 | 504 | 504 | 504 | |
Diameter of load chain(mm) | 5 | 6 | 7.1 | 6 | 7.1 | 10 | 10 | 10 | |
No.Of load chains | 1 | 1 | 1 | 2 | 2 | 2 | 4 | 8 | |
Dimensions(mm) | A | 120 | 147 | 181 | 147 | 181 | 224 | 373 | 638 |
B | 116 | 131 | 147 | 131 | 147 | 177 | 177 | 195 | |
C | 260 | 305 | 360 | 455 | 486 | 575 | 737 | 1002 | |
Net Weight(kg) | 7 | 10 | 15 | 15.5 | 22 | 37 | 68 | 160 | |
Extra weight per meter of extra lift(kg) | 1.5 | 1.8 | 2 | 2.7 | 3.2 | 5.3 | 9.8 | 19.6 | |
