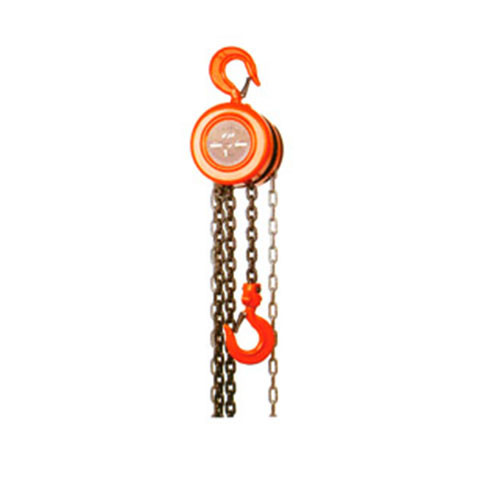

HMBE Type Chain Blocks
Part No. | HMBE0500 | HMBE1000 | HMBE1500 | HMBE2000 | HMBE3000 | HMBE5000 | HMBET100 | HMBET200 | |
Rated load(T) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 | |
Standard lift(m) | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | |
Test load(T) | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 15 | 30 | |
Min.distance between two hooks(mm) | 280 | 300 | 360 | 380 | 470 | 600 | 730 | 1000 | |
Efforts required at capacity(N) | 167 | 314 | 373 | 314 | 373 | 516 | 516 | 516 | |
Diameter of load chain(mm) | 6 | 6 | 8 | 6 | 8 | 10 | 10 | 10 | |
No.Of load chains | 1 | 1 | 1 | 2 | 2 | 2 | 4 | 8 | |
Dimensions(mm) | A | 142 | 142 | 178 | 142 | 178 | 210 | 358 | 580 |
B | 126 | 126 | 142 | 126 | 142 | 165 | 165 | 195 | |
C | 28 | 28 | 32 | 34 | 38 | 48 | 64 | 82 | |
D | 142 | 142 | 178 | 142 | 178 | 210 | 210 | 210 | |
Net Weight(kg) | 9.5 | 10 | 15 | 14 | 24 | 36 | 68 | 150 | |
Extra weight per meter of extra lift(kg) | 1.8 | 1.8 | 2.4 | 2.7 | 3.8 | 5.3 | 9.8 | 19.6 | |
