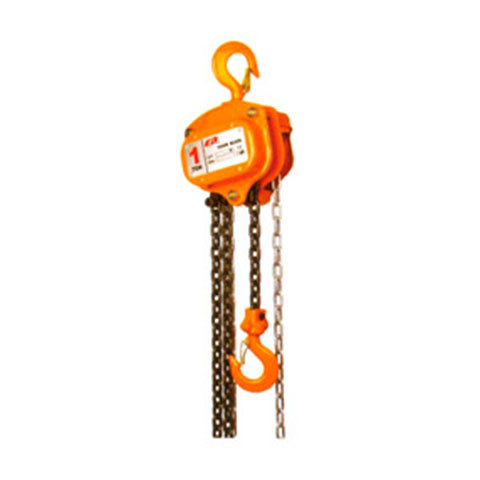

HMBB Type Chain Blocks
Part No. | HMBB0500 | HMBB1000 | HMBB1500 | HMBB2000 | HMBB3000 | HMBB5000 | HMBBT100 | HMBBT150 | HMBBT200 | |
Rated load(T) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 15 | 20 | |
Standard lift(m) | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | 3 | |
Test load(T) | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 15 | 22.5 | 30 | |
Efforts required at capacity(N) | 262 | 324 | 332 | 324 | 332 | 504 | 504 | 504 | 504 | |
Diameter of load chain(mm) | 5 | 6 | 7.1 | 6 | 7.1 | 10 | 10 | 10 | 10 | |
No.Of load chains | 1 | 1 | 1 | 2 | 2 | 2 | 4 | 6 | 8 | |
Dimensions(mm) | A | 115 | 131 | 142 | 131 | 142 | 171 | 171 | 204 | 215 |
B | 127 | 156 | 180 | 156 | 180 | 230 | 410 | 410 | 645 | |
C | 270 | 334 | 399 | 435 | 520 | 660 | 700 | 950 | 1075 | |
Net Weight(kg) | 7 | 10 | 15 | 16 | 22 | 37 | 68 | 125 | 160 | |
Extra weight per meter of extra lift(kg) | 1.5 | 1.8 | 2 | 2.7 | 3.2 | 5.3 | 9.8 | 14.7 | 19.6 | |
