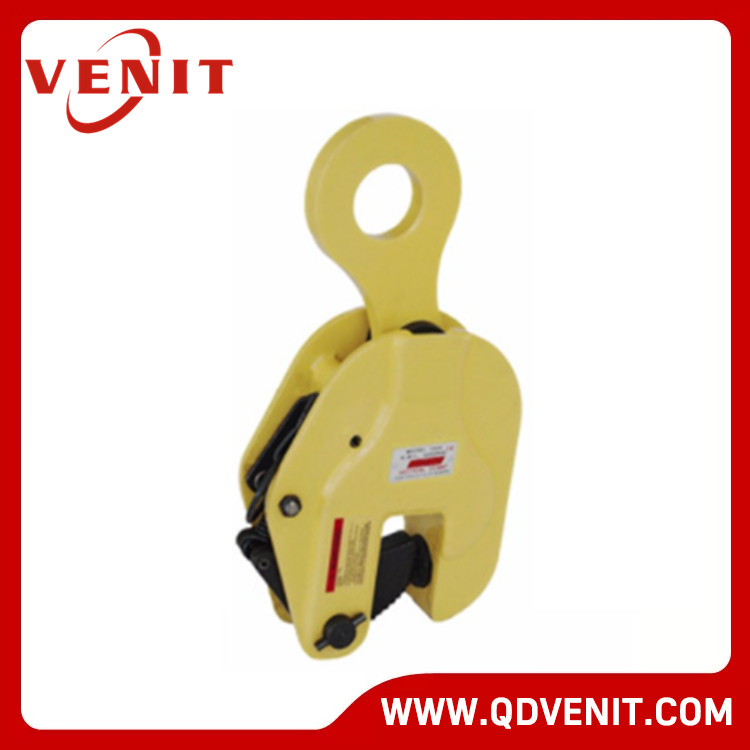

CDH Vertical Plate Clamp
Features:
Working Load Limited (WLL): 0.8 – 16T

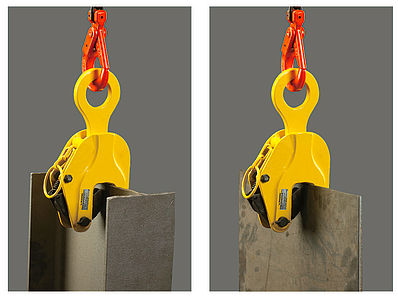

Standard design clamp for vertical lifting of steel plates and steel structures.
The clamp is fitted with spring-loaded tightening locking device to avoid any slip.
The clamp will be locked no matter the jaw is closed or open.
The clamp is made of high quality carbon steel.
High-frequency quenching of die-forged special alloy steels gives greater durability to the cam.

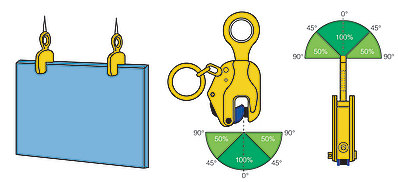

Application:
| Model | WLL | Jaw Opening | Weight |
| (TON) | (MM) | (KG) | |
| CDH0.8 | 0.8 | 0-16 | 2.8 |
| CDH1 | 1 | 0-22 | 3.6 |
| CDH2 | 2 | 0-30 | 5.5 |
| CDH3.2 | 3.2 | 0-40 | 10 |
| CDH5 | 5 | 0-50 | 17 |
| CDH8 | 8 | 0-60 | 26 |
| CDH10 | 10 | 0-80 | 32 |
| CDH12 | 12 | 25-90 | 48 |
| CDH16 | 16 | 60-125 | 80 |
