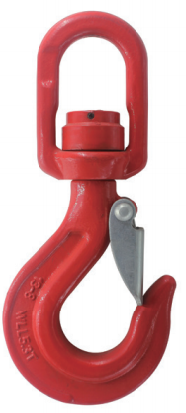

VNT788 G80 Swivel Hook with Latch with Bearing
Forged super alloy steel - Quenched and Tempered.
Suitable for EN818-2 G80 chain.
Individually proof tested at 2.5 times Working Load Limit.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Breakage test.
100% Magnaflux Crack Detection.
With safety latch.
Surface finish: Power plastified
Colour: Yellow or Red RALcode: RAL1003 or RAL3020.
Ultimate load is 4 times the Working Load Limit.

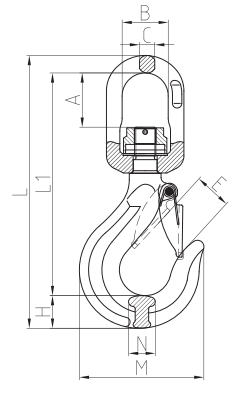

| ITEM.NO. | WEIGHT/kg | WLL/T | B.L/T | A±3 | B±2 | E±2.5 | M±1.5 | L1±3.5 | L±3 | N±2 | C±1 | H±2 |
| VNT788-06 | 0.65 | 1.12 | 4.48 | 30 | 32.5 | 24 | 69 | 138 | 168 | 16 | 11 | 19.3 |
| VNT788-7/8 | 0.95 | 2 | 8 | 45 | 36 | 28.5 | 88.3 | 173 | 212 | 20 | 13 | 23 |
| VNT788-10 | 1.71 | 3.15 | 12.6 | 53 | 42 | 31 | 105 | 208 | 255 | 22 | 15.5 | 29.5 |
| VNT788-13 | 2.97 | 5.3 | 21.2 | 63.8 | 50 | 40.2 | 135 | 249 | 305.6 | 32 | 17 | 38 |
| VNT788-16 | 5.3 | 8 | 32 | 68 | 61 | 45 | 161 | 6 | 367 | 37.5 | 21.5 | 45.4 |
| VNT788-18/20 | 9.5 | 12.5 | 50 | 90.5 | 74 | 56 | 191.7 | 356 | 434.5 | 49 | 25 | 50 |
| VNT788-22 | 13.8 | 15 | 60 | 100.5 | 97 | 70 | 224 | 441 | 536 | 58 | 33 | 62 |
