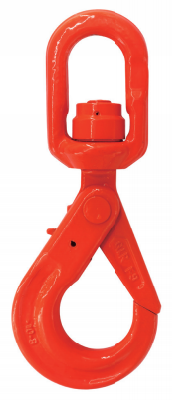

VNT042 G80 Swivel Selflock Hook with Bearing
Forged or welded super alloy steel.
Suitable for use with G80 chain.
Individually proof tested at 2.5 times Working Load Limit.
100% Magnaflux Crack Detection.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Strict break load test.
Surface finish: Power plastified Colour: Yellow or Red RALcode: RAL1003 or RAL3020.
All load pin are 100% individually inspected and tested.
Ultimate load is 4 times the Working Load Limit.
| ITEM NO | WEIGHT/KG | WLL/T | B.L/T | A±1.5 | B±1 | C±2 | L1±3 | L±3 | T±1.5 | E±2 | M±2 | N±1 | Φ±1.5 |
| VNT042-06 | 0.71 | 1.12 | 4.48 | 32.5 | 11.5 | 33.8 | 160 | 194 | 28 | 32 | 70 | 15 | 34 |
| VNT042-7/8 | 1.1 | 2 | 8 | 36 | 13 | 40 | 202 | 240 | 35 | 39 | 88 | 20 | 44 |
| VNT042-10 | 2.1 | 3.15 | 12.6 | 42 | 15.5 | 48 | 237 | 283 | 45 | 48 | 108 | 26 | 58 |
| VNT042-13 | 4.0 | 5.3 | 21.2 | 50 | 17 | 58 | 282 | 343 | 52.5 | 65 | 134 | 33 | 70 |
| VNT042-16 | 7.3 | 8 | 32 | 61 | 21.5 | 60 | 341.5 | 419 | 63.3 | 65 | 168.6 | 38 | 86 |
| VNT042-20 | 11.6 | 12.5 | 50 | 76 | 26.5 | 75.5 | 400 | 483 | 86 | 85 | 185 | 50 | 97 |
| VNT042-22 | 16.0 | 15 | 60 | 97 | 33 | 97 | 466 | 564 | 76 | 80 | 202 | 52 | 98 |
| VNT042-26 | 21.5 | 21.2 | 84.8 | 123 | 42 | 115 | 544 | 661 | 96 | 125 | 240 | 60 | 110 |
