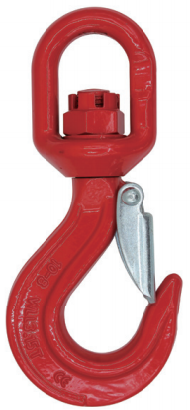

VNT268 G80 Swivel Hook with Latch
Forged super alloy steel - Quenched and Tempered.
Suitable for EN818-2 G80 chain.
Individually proof tested at 2.5 times Working Load Limit.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Breakage test.
100% Magnaflux Crack Detection.
With safety latch.
Surface finish: Power plastified
Colour: Yellow or Red RALcode: RAL1003 or RAL3020.
Ultimate load is 4 times the Working Load Limit.

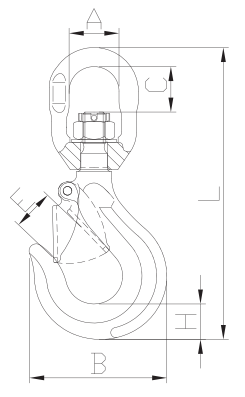

| Item No. | Weight/kg | WLL/T | B.L/T | A±2 | B±2.5 | E±1.5 | H±1.5 | C±2 | L±4 |
| VNT268-7/8 | 0.85 | 2 | 8 | 35.5 | 88.5 | 27 | 23.5 | 25 | 190 |
| VNT268-10 | 1.54 | 3.15 | 12.6 | 42 | 104.5 | 32 | 29.5 | 34 | 233 |
| VNT268-13 | 3.04 | 5.3 | 21.2 | 49 | 135 | 40 | 38 | 41 | 291.5 |
| VNT268-16 | 5.36 | 8 | 32 | 61 | 161 | 45 | 45.4 | 53 | 352 |
