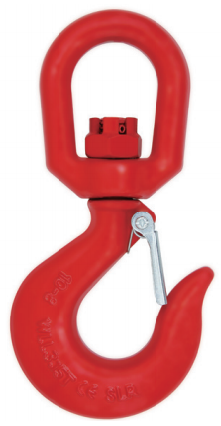

VNT040 G80 Swivel Hook with Safety Latch
Forged super alloy steel - Quenched and Tempered.
Suitable for EN818-2 G80 chain.
Individually proof tested at 2.5 times Working Load Limit.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Breakage test.
100% Magnaflux Crack Detection.
With safety latch.
Surface finish: Power plastified
Colour: Yellow or Red RALcode: RAL1003 or RAL3020.
Ultimate load is 4 times the Working Load Limit.
| ITEM NO. | WEIGHT/KG | WLL/T | B.L/T | A±1.2 | E±1.5 | B±2.5 | H±1 | K±2 | L±2.5 | M±1 |
| VNT040-06 | 0.34 | 1.12 | 4.48 | 32 | 17 | 22.5 | 9 | 109 | 137 | 16 |
| VNT040-08 | 1.02 | 2 | 8 | 42 | 21.5 | 35 | 15.8 | 150 | 192 | 21 |
| VNT040-10 | 1.24 | 3.15 | 12.6 | 42.5 | 26 | 35 | 15.8 | 162.5 | 208.5 | 23 |
| VNT040-13 | 3.6 | 5.3 | 21.2 | 48 | 32.5 | 39 | 18 | 191 | 246 | 31 |
| VNT040-16 | 4.66 | 8 | 32 | 62 | 43 | 53 | 25 | 243.5 | 313 | 34 |
| VNT040-20 | 7.4 | 12.5 | 50 | 68 | 49.5 | 51 | 28.5 | 276.5 | 363.5 | 41.5 |
| VNT040-22 | 10.6 | 15 | 60 | 79 | 54.5 | 65 | 32 | 332 | 431 | 55.7 |
| VNT040-26 | 21.4 | 21.2 | 84.8 | 105 | 81 | 114 | 40 | 429.5 | 545.5 | 70 |
| VNT040-32 | 32 | 31.5 | 126 | 105 | 100 | 96 | 40 | 465.3 | 596 | 76.2 |
