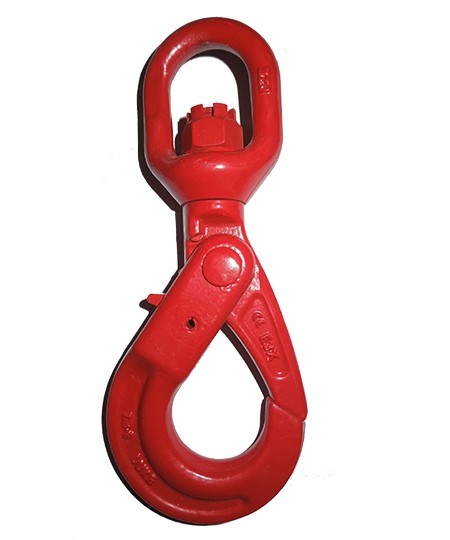

VNT083 G80 European Type Swivel Selflock Hook
Forged or welded super alloy steel.
Suitable for use with G80 chain.
Individually proof tested at 2.5 times Working Load Limit.
100% Magnaflux Crack Detection.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Strict break load test.
Surface finish: Power plastified Colour: Yellow or Red RALcode: RAL1003 or RAL3020.
All load pin are 100% individually inspected and tested.
Ultimate load is 4 times the Working Load Limit.
| Item No. | Weight/kg | WLL/T | B.L/T | B | C | D | L | T | E |
| VNT083-06 | 0.71 | 1.12 | 4.48 | 32.5 | 22 | 11.25 | 170 | 34 | 29 |
| VNT083-7/8 | 1.1 | 2 | 8 | 32.5 | 26 | 12.5 | 210 | 46 | 34 |
| VNT083-10 | 2.0 | 3.15 | 12.6 | 42 | 34 | 15 | 247 | 56 | 44 |
| VNT083-13 | 4.0 | 5.3 | 21.2 | 50 | 38.5 | 16 | 302 | 69 | 52 |
| VNT083-16 | 7.3 | 8 | 32 | 61 | 55 | 21.5 | 383 | 86 | 60 |
| VNT083-20 | 11.6 | 12.5 | 50 | 72 | 61 | 26 | 418 | 100 | 83 |
| VNT083-22 | 16.0 | 15 | 60 | 95 | 95 | 33 | 527 | 98 | 88 |
| VNT083-26 | 21.5 | 21.2 | 84.8 | 122 | 115 | 42 | 610 | 110 | 95.5 |
| VNT083-32 | 79 | 31.5 | 126 | 140 | 146 | 52 | 777 | 166 | 150 |

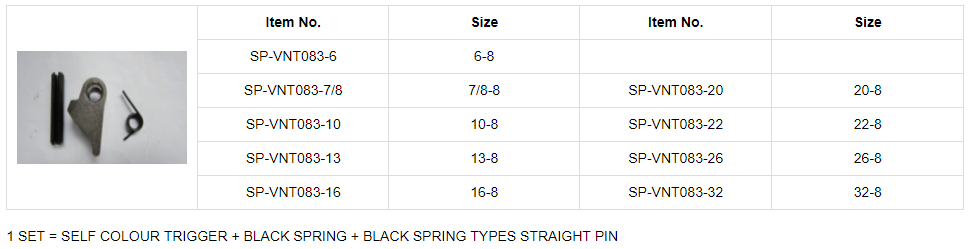

SP-VNT083 TRIGGER PARTS
