VNT766 G80 European Type Clevis Self-Locking Hook
Forged super alloy steel -Quenched and Tempered
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for20000 cycles
Breakage test
100% magnaflux crack detection
Surface finish: Power plastified Colour: Yellow or Red RALcode: RAL1003 or RAL3020.
Ultimate load is 4 times the Working Load Limit.

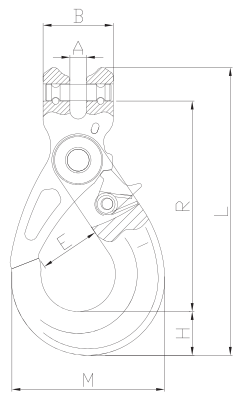

| Item No. | Weight/kg | WLL/T | B.L/T | A±0.5 | B±1 | E±1 | H±1 | R±2 | M±2 | L±3 |
| VNT766-06 | 0.5 | 1.12 | 4.48 | 7.5 | 32 | 28 | 20 | 96 | 70 | 131 |
| VNT766-08 | 0.9 | 2 | 8 | 9.5 | 36 | 35.5 | 26 | 123 | 90 | 166 |
| VNT766-10 | 1.6 | 3.15 | 12.6 | 12 | 46 | 45 | 30 | 144 | 109 | 196.5 |
| VNT766-13 | 2.9 | 5.3 | 21.2 | 15 | 59 | 53.5 | 40.5 | 182 | 138.5 | 251 |
| VNT766-16 | 5.9 | 8 | 32 | 17.5 | 70 | 62 | 50.5 | 217 | 170.5 | 303 |
| VNT766-20 | 8.6 | 12.5 | 50 | 25 | 85 | 76.5 | 62 | 235 | 192.5 | 337.5 |
| VNT766-22 | 12.1 | 15 | 60 | 25.5 | 98 | 80 | 66 | 276.5 | 205 | 391 |
