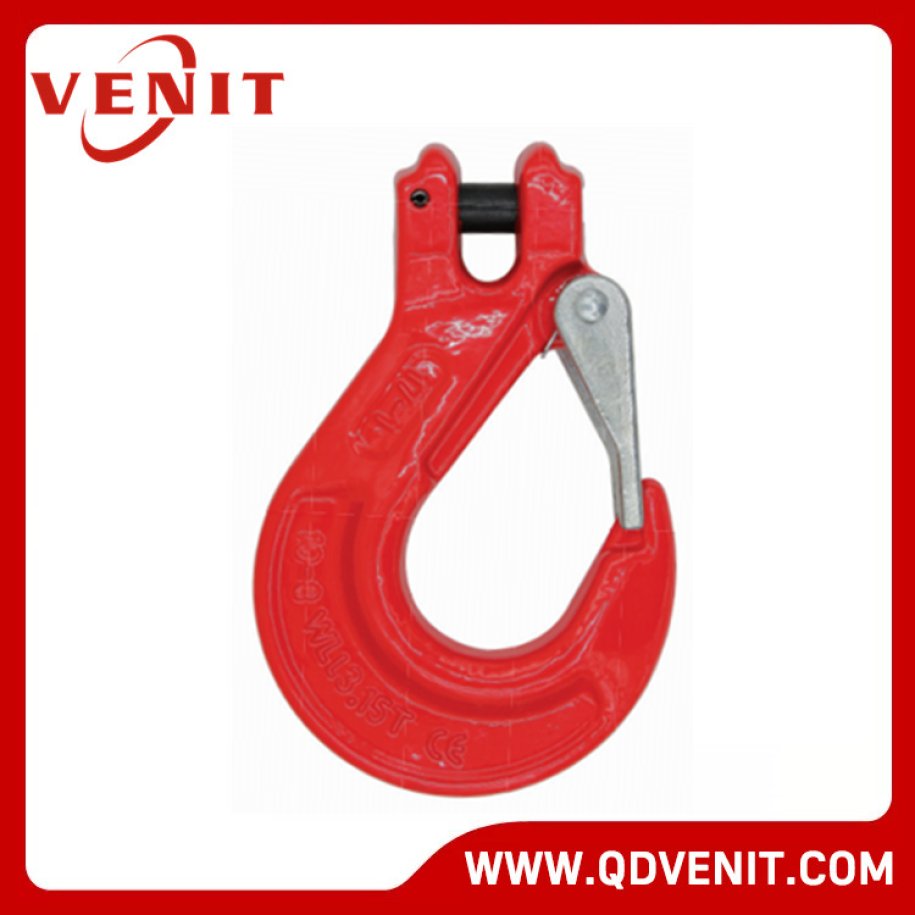

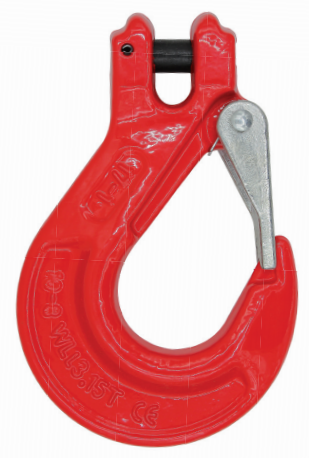

VNT333 G80 Clevis Sling Hook with Cast Latch
Forged super alloy steel - Quenched and Tempered.
Suitable for EN818-2 G80 chain.
Individually proof tested at 2.5 times Working Load Limit.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Breakage test.
100% Magnaflux Crack Detection.

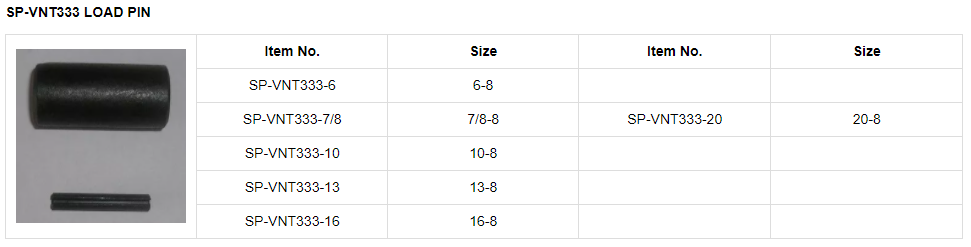

All load pins are 100% individually inspected and tested.
With cast latch.
Surface finish: Power plastified
Colour: Yellow or Red RALcode: RAL1003 or RAL3020. Other colour is available as per request.
Ultimate load is 4 times the Working Load Limit.

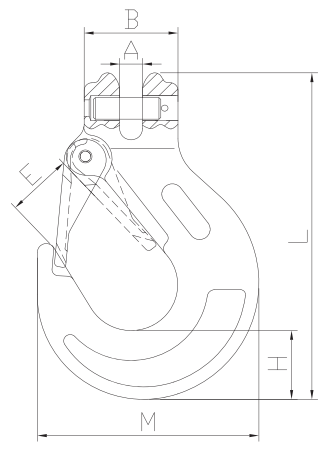

| ITEM NO. | WEIGHT/kg | WLL/T | B.L/T | A±0.5 | B±1.2 | E±1 | H±2 | M±1 | L±2 |
| VNT333-6 | 0.3 | 1.12 | 4.48 | 8 | 32 | 19.5 | 20 | 68 | 108 |
| VNT333-7/8 | 0.55 | 2 | 8 | 9.5 | 38.5 | 24 | 25 | 87.4 | 129.5 |
| VNT333-10 | 0.96 | 3.15 | 12.6 | 12.5 | 48 | 28 | 36 | 106.7 | 163.5 |
| VNT333-13 | 1.52 | 5.3 | 21.2 | 16 | 56 | 35 | 41.6 | 130 | 195.5 |
| VNT333-16 | 3.43 | 8 | 32 | 18.5 | 65.5 | 43 | 46.2 | 155.5 | 236 |
| VNT333-20 | 6.73 | 12.5 | 50 | 24.5 | 92 | 51.6 | 51 | 180 | 281 |
