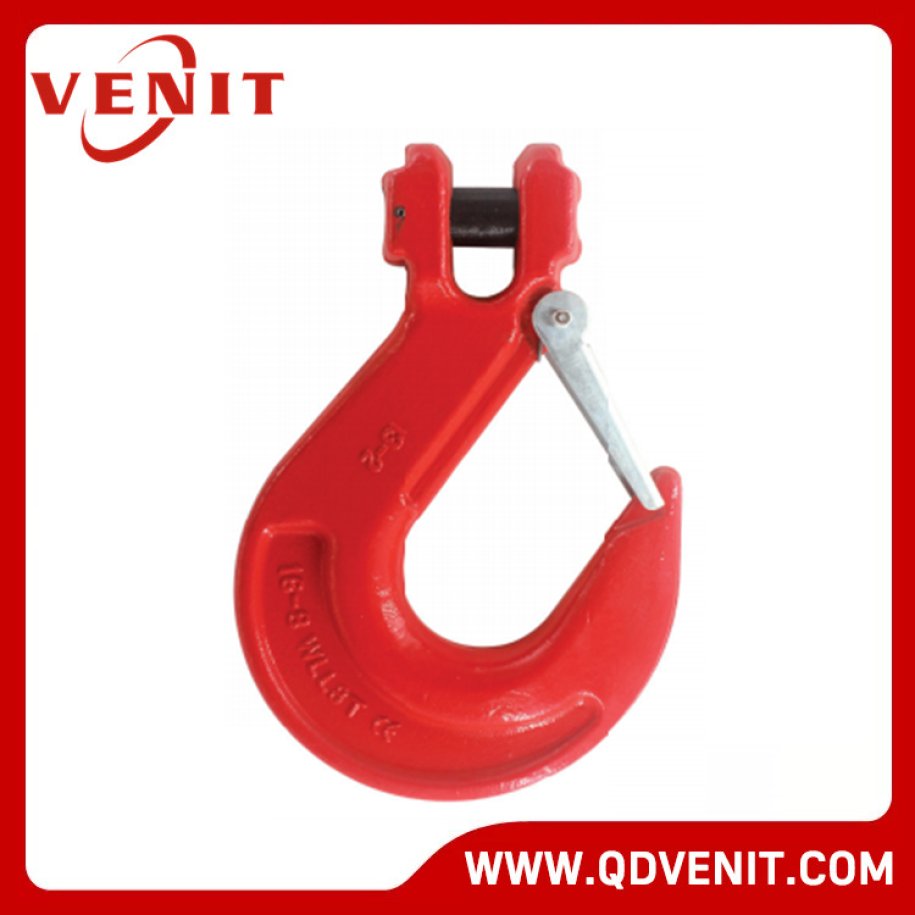

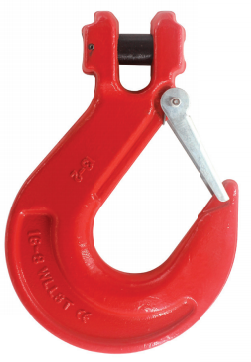

VNT012 G80 Clevis Sling Hook with Cast Latch
Forged super alloy steel - Quenched and Tempered.
Suitable for EN818-2 G80 chain.
Individually proof tested at 2.5 times Working Load Limit.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Breakage test.
100% Magnaflux Crack Detection.

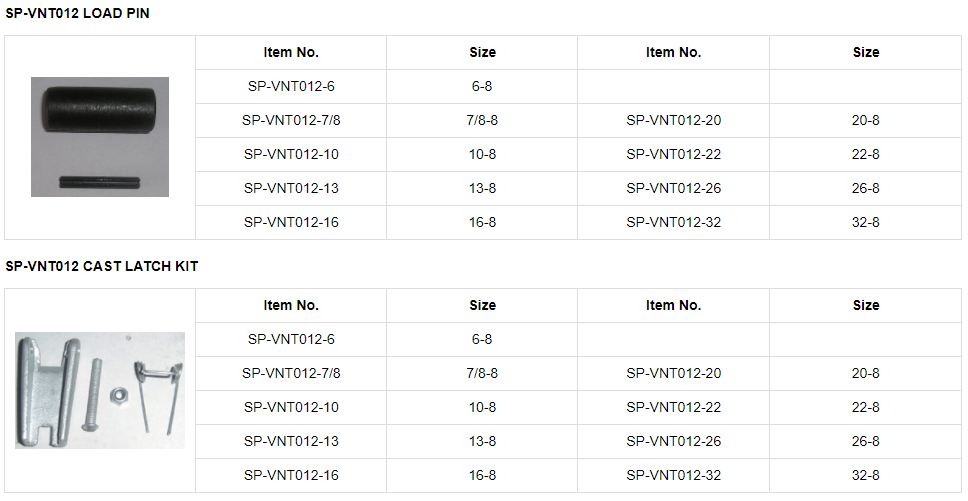

All load pins are 100% individually inspected and tested.
With cast latch.
Surface finish: Power plastified
Colour: Yellow or Red RALcode: RAL1003 or RAL3020.
Ultimate load is 4 times the Working Load Limit.

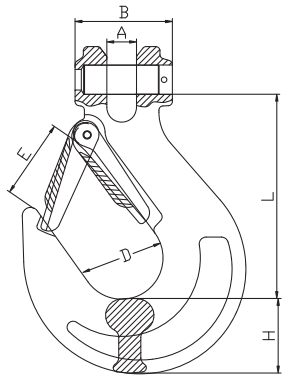

| ITEM NO. | WEIGHT/KG | WLL/T | B.L/T | A±0.5 | B±1.5 | D±1 | H±2 | L±1 | E±2 |
| VNT012-6 | 0.32 | 1.12 | 4.48 | 8 | 32 | 35 | 23 | 76 | 26 |
| VNT012-7/8 | 0.48 | 2 | 8 | 9.5 | 37 | 37 | 25 | 86.4 | 29 |
| VNT012-10 | 0.95 | 3.15 | 12.6 | 12.5 | 49 | 46 | 31 | 104 | 39 |
| VNT012-13 | 1.8 | 5.3 | 21.2 | 16.5 | 56.5 | 56 | 42.5 | 128 | 47.5 |
| VNT012-16 | 3.4 | 8 | 32 | 21.5 | 70.5 | 60 | 54 | 150 | 56 |
| VNT012-20 | 6 | 12.5 | 50 | 24 | 77 | 79 | 58 | 180 | 59 |
| VNT012-22 | 10.4 | 15 | 60 | 26 | 91 | 101 | 62 | 213 | 72 |
| VNT012-26 | 14.5 | 21.2 | 84.8 | 30 | 117 | 115 | 75 | 250 | 101 |
| VNT012-32 | 27.0 | 31.5 | 126 | 35 | 150 | 140 | 88 | 317 | 124 |
