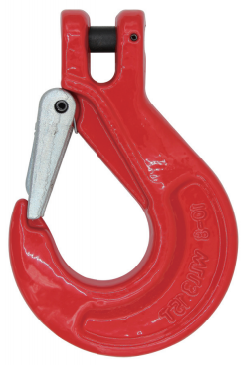

VNT247 G80 Italian Type Clevis Slip Hook with Cast Latch
Forged super alloy steel -Quenched and Tempered
Suitable for EN818-2 G80 chain
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection
All load pins are 100% individually inspected and tested
With cast latch
Surface finish:Powder plastified
Color code:Red RAL3020 / Yellow RAL1003
Ultimate load is 4 times the Working Load Limit.

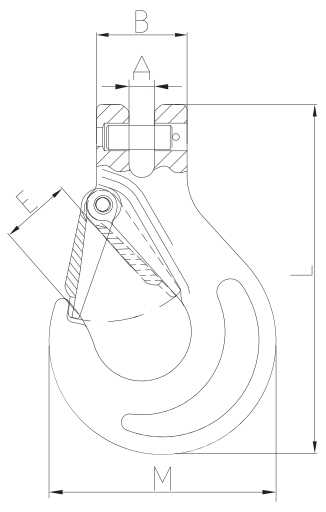

ITEM NO. | WEIGHT/kg | WLL/T | B.L/T | A±2 | B±2 | E±2 | M±3 | L±3 |
VNT247-7/8 | 0.55 | 2 | 8 | 9.5 | 38.5 | 25.9 | 87.4 | 129 |
VNT247-10 | 1.26 | 3.15 | 12.6 | 12.5 | 40.5 | 32 | 110 | 166 |
VNT247-13 | 2.1 | 5.3 | 21.2 | 15.5 | 53 | 41 | 133 | 205 |
VNT247-16 | 3.32 | 8 | 32 | 18.5 | 65.5 | 44 | 155 | 240 |
