VNT335 G80 Clevis Self-locking Hook
Forged super alloy steel -Quenched and Tempered
Suitable for EN818-2 G80 chain
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for20000 cycles
Breakage test
100% magnaflux crack detection
Surface finish: Powder plastified
Color code：Blue RAL5015
Position lock lath is Self-Locking when hook is loaded
Ultimate load is 4 times the Working Load Limit.

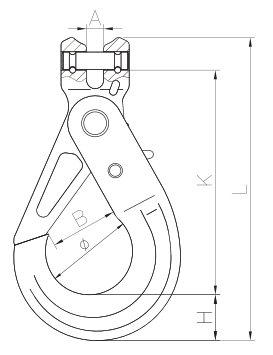

| Item No. | Weight/kg | WLL/T | B.L/T | A±1.5 | B±1.5 | K±2 | H±1 | L±3 | Φ±2 |
| VNT335-6 | 0.5 | 1.12 | 4.48 | 7.5 | 28 | 96 | 20 | 131 | 34 |
| VNT335-7/8 | 0.8 | 2 | 8 | 9.5 | 35 | 118.5 | 24 | 160 | 46 |
| VNT335-10 | 1.42 | 3.15 | 12.6 | 12 | 45 | 144 | 28 | 194 | 58 |
| VNT335-13 | 3 | 5.3 | 21.2 | 15 | 54 | 181.5 | 41 | 251 | 69 |
| VNT335-16 | 5.8 | 8 | 32 | 17.5 | 60.5 | 216 | 50 | 302 | 86 |
| VNT335-18/20 | 8.75 | 12.5 | 50 | 25 | 74.5 | 239 | 62 | 342 | 92 |
| VNT335-22 | 12.3 | 15 | 60 | 25.5 | 80 | 276 | 65 | 391 | 98 |
| VNT335-26 | 20.6 | 21.2 | 84.8 | 30 | 99 | 312 | 74 | 448 | 110 |
