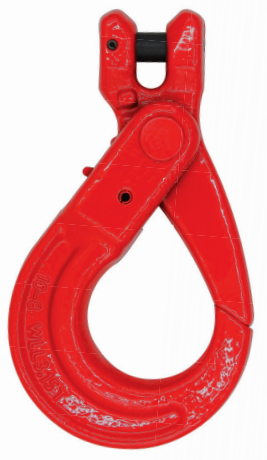

VNT738 G80 Improved Clevis Selflock Hook
Forged or welded super alloy steel.
Suitable for use with G80 chain.
Individually proof tested at 2.5 times Working Load Limit.
100% Magnaflux Crack Detection.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Strict break load test.
Surface finish: Power plastified Colour: Yellow or Red RALcode: RAL1003 or RAL3020. Other colour is available as per request.
All load pin are 100% individually inspected and tested.
Ultimate load is 4 times the Working Load Limit.

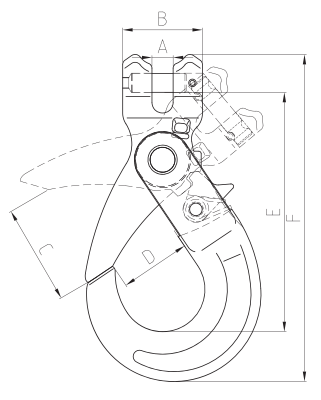

| Item No. | Weight/kg | WLL/T | BL/T | A±1 | B±1 | C±2 | D1±2 | E1±3 | F±3 |
| VNT738-6 | 0.44 | 1.12 | 4.48 | 8 | 32 | 35 | 28 | 99 | 134 |
| VNT738-7/8 | 0.8 | 2 | 8 | 9.5 | 38.5 | 39 | 39 | 119.3 | 161.9 |
| VNT738-10 | 1.38 | 3.15 | 12.6 | 12.5 | 48 | 48 | 45 | 142 | 195 |
| VNT738-13 | 2.81 | 5.3 | 21.2 | 15 | 59 | 60 | 52.5 | 180 | 249 |
| VNT738-16 | 6 | 8 | 32 | 18.5 | 77 | 65 | 63.3 | 225 | 310 |
| VNT738-18/20 | 7.25 | 12.5 | 50 | 24 | 77 | 85 | 86 | 238 | 335 |
| VNT738-22 | 12.8 | 15 | 60 | 25 | 97.5 | 83 | 76 | 277 | 392 |
| VNT738-26 | 21.8 | 21.2 | 84.8 | 30 | 118 | 116 | 96 | 312 | 450 |
| VNT738-32 | 49.6 | 31.5 | 126 | 35 | 150 | 140 | 135 | 416 | 589.6 |
