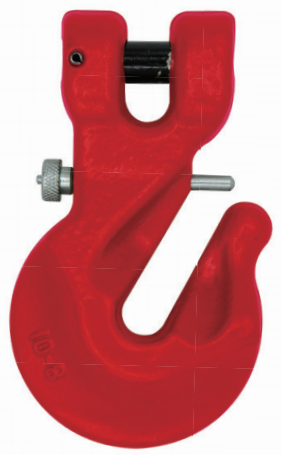

VNT712 G80 Special Type Clevis Hook with Safety Pin
Forged super alloy steel - Quenched and Tempered.
Suitable for EN818-2 G80 chain.
Individually proof tested at 2.5 times Working Load Limit.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Breakage test.
100% Magnaflux Crack Detection.
All load pins are 100% individually inspected and tested.
Surface finish: Power plastified
Colour: Yellow or Red RALcode: RAL1003 or RAL3020.other colour is available as per request.
Ultimate load is 4 times the Working Load Limit.
Above Working Load Limit is based on side pull.

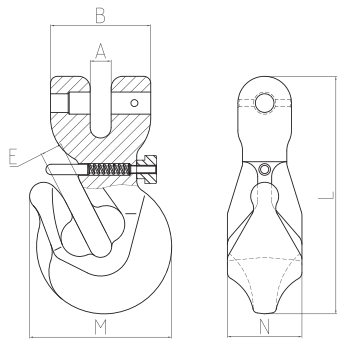

| ITEM NO. | WEIGHT/KG | WLL/T | B.L/T | A±2 | B±2 | E±2 | M±3 | N±3 | L±3 |
| VNT712-08 | 0.6 | 2 | 8 | 9 | 43 | 9.5 | 61 | 32 | 102 |
| VNT712-10 | 1 | 3.15 | 12.6 | 12 | 49 | 12 | 75 | 40 | 125 |
| VNT712-13 | 2.7 | 5.3 | 21.12 | 14.5 | 60 | 15 | 99.3 | 52 | 160 |
| VNT712-16 | 3.7 | 8 | 32 | 17.3 | 73 | 18 | 121 | 61 | 188 |
