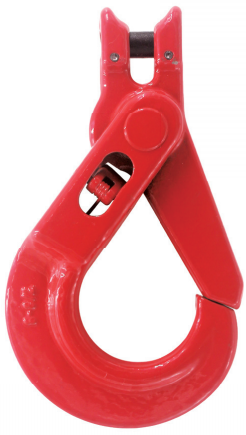

VNT663 G80 Clevis Selflock Hook with Side Trigger
Forged or welded super alloy steel.
Suitable for use with G80 chain.
Individually proof tested at 2.5 times Working Load Limit.
100% Magnaflux Crack Detection.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Strict break load test.
Surface finish: Power plastified Colour: Yellow or Red RALcode: RAL1003 or RAL3020. Other colour is available as per request.
All load pin are 100% individually inspected and tested.
Ultimate load is 4 times the Working Load Limit.

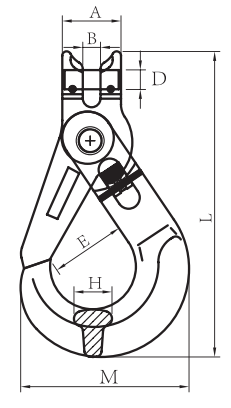

| ITEM NO. | WEIGHT/KG | WLL/T | B.L/T | A±0.5 | B±0.5 | E±0.5 | M±0.5 | H±0.3 | L±1.5 | D±0.1 |
| VNT663-7/8 | 0.792 | 2 | 8 | 31 | 9 | 38.5 | 90 | 20 | 164 | 10.5 |
| VNT663-10 | 2.25 | 3.15 | 12.6 | 45 | 12 | 48.3 | 118 | 22 | 206 | 14.7 |
| VNT663-13 | 4.57 | 5.3 | 21.2 | 59 | 15 | 60 | 153 | 33 | 260 | 18.5 |
