VNT564 G80 Forged Super Alloy Steel UK Type Clevis Hook
Forged super alloy steel -Quenched and Tempered
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection
Surface finish: Power plastified Colour: Yellow or Red RALcode: RAL1003 or RAL3020.
Ultimate load is 4 times the Working Load Limit.

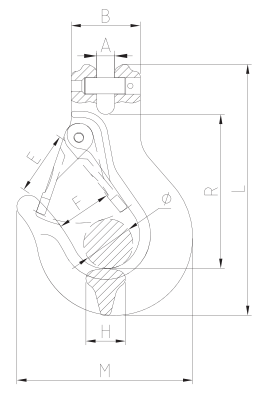

| ITEM.NO. | WEIGHT/kg | WLL/T | B.L/T | A±0.5 | B±1 | R | E±1 | F | Φ | H±0.5 | M±1 | L±2 |
| VNT564-8 | 0.65 | 2 | 8 | 9.5 | 38.5 | 86 | 35 | 28 | 25.5 | 22 | 95 | 140 |
