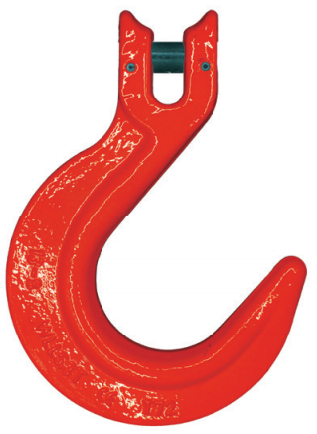

VNT507 G80 Clevis Large Opening Hook
Forged super alloy steel - Quenched and Tempered.
Individually proof tested at 2.5 times Working Load Limit.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Breakage test.
100% Magnaflux Crack Detection.
Surface finish: Power plastified
Colour: Yellow or Red RALcode: RAL1003 or RAL3020.
Ultimate load is 4 times the Working Load Limit.

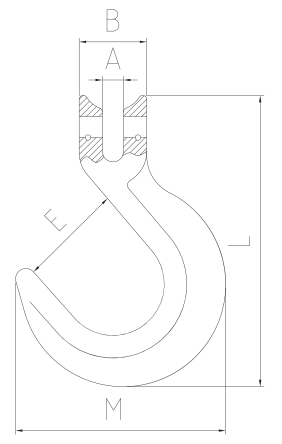

| ITEM NO. | WEIGHT/kg | WLL/T | B.L/T | A±1 | B±1 | E±1.5 | M±1.5 | L±3 |
| VNT507-13 | 2 | 5.3 | 21.2 | 15.5 | 49.5 | 74 | 154 | 213 |
