VNT489 G80 Special Clevis Self-lock Hook
Forged super alloy steel - Quenched and Tempered.
Suitable for EN818-2 G80 chain.
Individually proof tested at 2.5 times Working Load Limit.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Breaking test.
100% Magnaflux Crack Detection.
Surface finish: Power plastified
Colour: Yellow or Red RALcode: RAL1003 or RAL3020.
Other colour is available as per request.
Positive lock latch is self-locking when hook is loaded.
Ultimate load is 4 times the Working Load Limit.

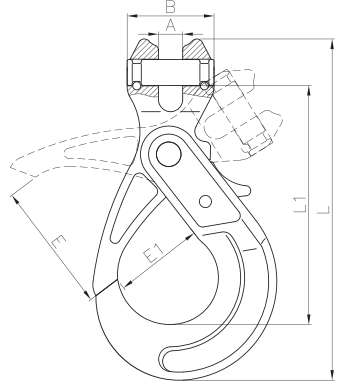

| Item No. | Weight/kg | WLL/T | B.L/T | A±1 | B±1 | E±2 | E1±2 | L1±3 | L±3 |
| VNT489-10 | 0.92 | 3.2 | 12.8 | 12 | 43 | 65 | 44 | 118 | 169 |
