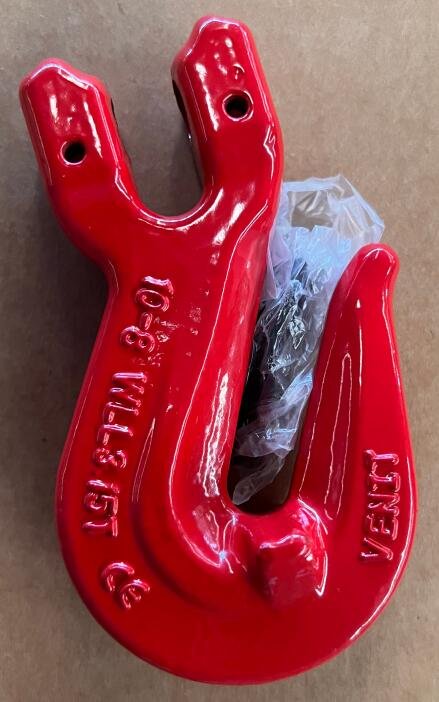

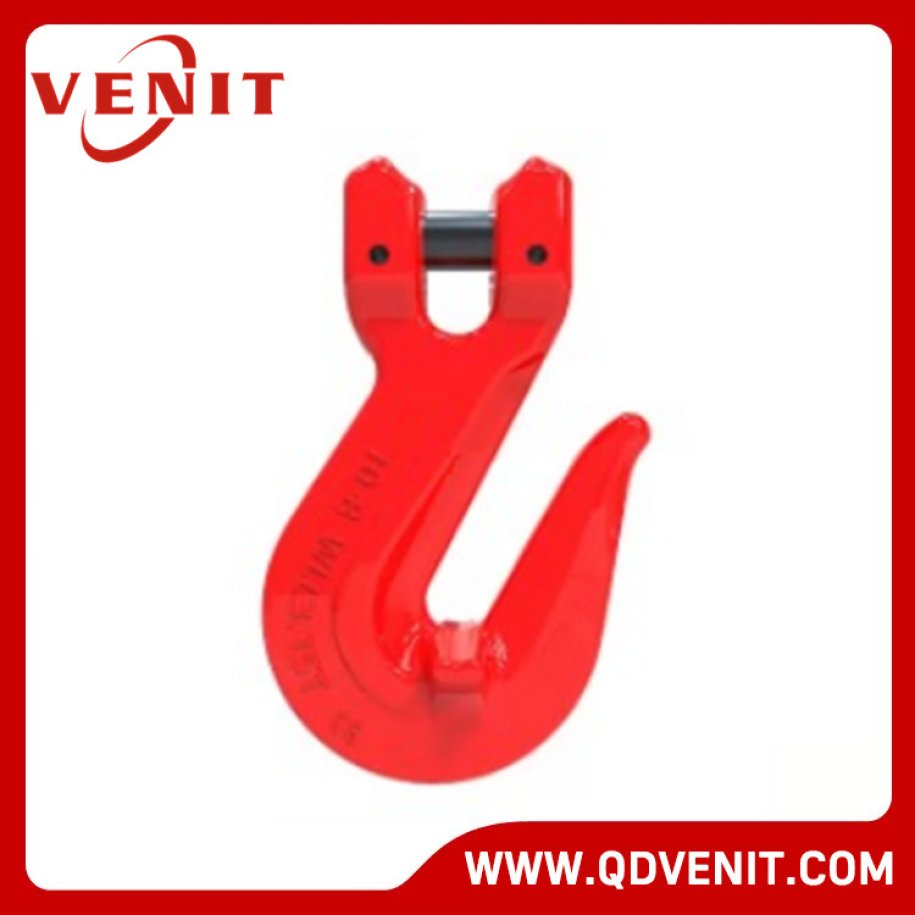

VNT338 G80 Clevis Shortening Cradle Grab Hook with Wings
Forged super alloy steel -Quenched and Tempered
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection
Surface finish: Power plastified
Colour: Yellow or Red RALcode: RAL1003 or RAL3020.other colour is available as per request.
Ultimate load is 4 times the Working Load Limit.
Above Working Load Limit is based on side pull.

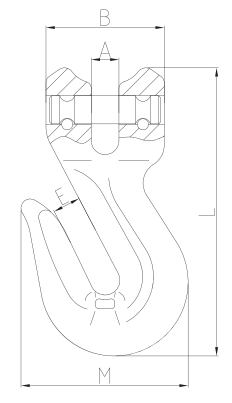

| ITEM.NO. | WEIGHT/kg | WLL/T | B.L/T | A±2 | B±2 | E±2 | H±3 | L±3 |
| VNT338-06 | 0.28 | 1.12 | 4.48 | 7.5 | 32 | 8 | 45.5 | 78 |
| VNT338-7/8 | 0.3 | 2 | 8 | 9 | 35 | 11 | 63 | 108 |
| VNT338-10 | 0.95 | 3.15 | 12.6 | 12 | 46 | 13 | 79 | 127 |
| VNT338-13 | 1.97 | 5.3 | 21.2 | 15 | 59 | 16 | 100 | 163 |
| VNT338-16 | 3.45 | 8 | 32 | 17.5 | 70 | 20 | 122 | 204 |
| VNT338-18/20 | 5.3 | 12.5 | 50 | 23 | 80 | 25 | 150.5 | 244 |
| VNT338-22 | 7.8 | 15 | 60 | 25.5 | 98 | 26 | 169 | 280 |
