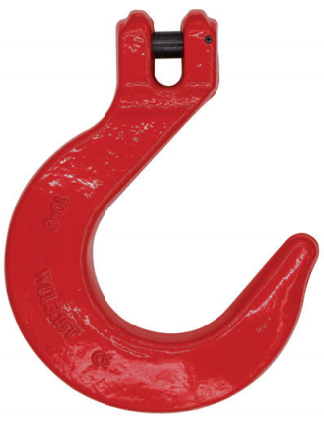

VNT237 G80 Clevis Foundry Hook
Forged super alloy steel - Quenched and Tempered.
Suitable for EN818-2 G80 chain.
Individually proof tested at 2.5 times Working Load Limit.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Breakage test.
100% Magnaflux Crack Detection.
All load pins are 100% individyally inspected and tested.
Surface finish: Power plastified
Colour: Yellow or Red RALcode: RAL1003 or RAL3020.
Ultimate load is 4 times the Working Load Limit.

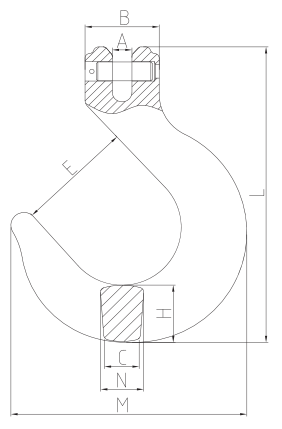

| Item No. | Weight/kg | WLL/T | B.L/T | A±0.5 | B±1.2 | M±2 | E±1 | C±1 | N±0.5 | H±2 | L±2 |
| VNT237-7/8 | 1.1 | 2 | 8 | 9.5 | 37 | 128 | 63.4 | 18 | 18 | 31.5 | 161 |
| VNT237-10 | 2.5 | 3.15 | 12.6 | 13 | 49 | 156 | 76.9 | 23 | 32 | 38 | 199 |
| Item No. | Weight/kg | WLL/T | B.L/T | A±1 | E±1.5 | B±1 | M±1.5 | L±3 |
| VNT237-13 | 2 | 5.3 | 21.2 | 15.5 | 74 | 49.5 | 153.75 | 212.6 |
