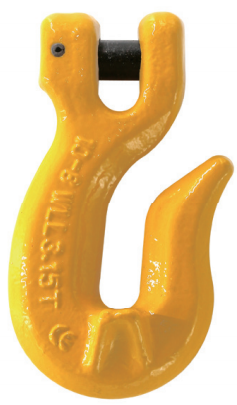

VNT142 G80 Deep Throat Clevis Grab Hook
Forged super alloy steel - Quenched and Tempered.
Suitable for EN818-2 G80 chain.
Individually proof tested at 2.5 times Working Load Limit.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Breakage test.
100% Magnaflux Crack Detection.
All load pins are 100% individually inspected and tested.
Surface finish: Power plastified
Colour: Yellow or Red RALcode: RAL1003 or RAL3020. Other colour is available as per request.
Ultimate load is 4 times the Working Load Limit.
Above Working Load Limit is based on side pull.

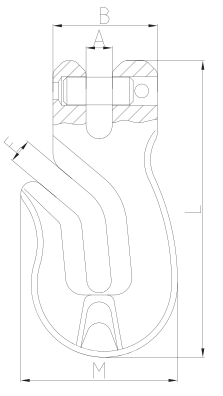

| ITEM NO. | WEIGHT/KG | WLL/T | B.L/T | A±2 | B±2 | E±2 | M±3 | L±3 |
| VNT142-06 | 0.2 | 1.12 | 4.48 | 7.5 | 31.5 | 8 | 45 | 85 |
| VNT142-7/8 | 0.5 | 2 | 8 | 9.5 | 37.5 | 10.5 | 57 | 106 |
| VNT142-10 | 0.75 | 3.15 | 12.6 | 12.5 | 47.5 | 13 | 74 | 127 |
| VNT142-13 | 1.63 | 5.3 | 21.2 | 15 | 58.5 | 15.5 | 89 | 165.5 |
