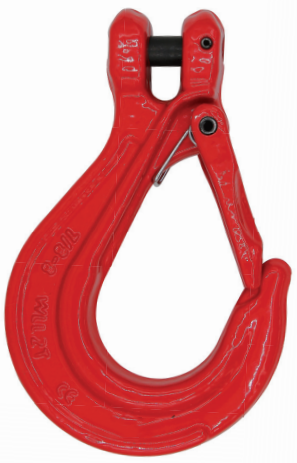

VNT104 G80 Clevis Slip Hook
Forged super alloy steel -Quenched and Tempered
Suitable for EN818-2 G80 chain
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection
All load pins are 100% individually inspected and tested
Surface finish:Powder plastified
Color code:Red RAL3020 / Yellow RAL1003
Ultimate load is 4 times the Working Load Limit.

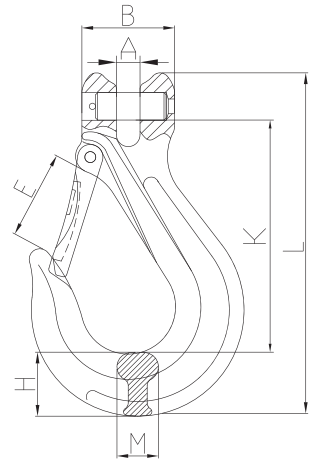

ITEM NO. | WEIGHT/kg | WLL/T | B.L/T | A±2 | B±2 | M±2 | H±3 | K±3 | L±3 |
VNT104-6 | 0.4 | 1.5 | 6 | 7 | 31 | 16 | 20.5 | 77 | 110 |
VNT104-7/8 | 0.54 | 2 | 8 | 9.2 | 35 | 20 | 22 | 94 | 134 |
VNT104-10 | 1 | 3.15 | 12.6 | 12.5 | 48 | 23.5 | 29.5 | 111 | 163 |
VNT104-13 | 1.88 | 5.3 | 21.2 | 16.5 | 57 | 32 | 38 | 139 | 206 |
VNT104-16 | 3.35 | 8 | 32 | 18.5 | 74 | 34.5 | 48.6 | 163 | 246 |
VNT104-20 | 7.55 | 12.8 | 51.2 | 24 | 81.5 | 42 | 71 | 198 | 306 |
