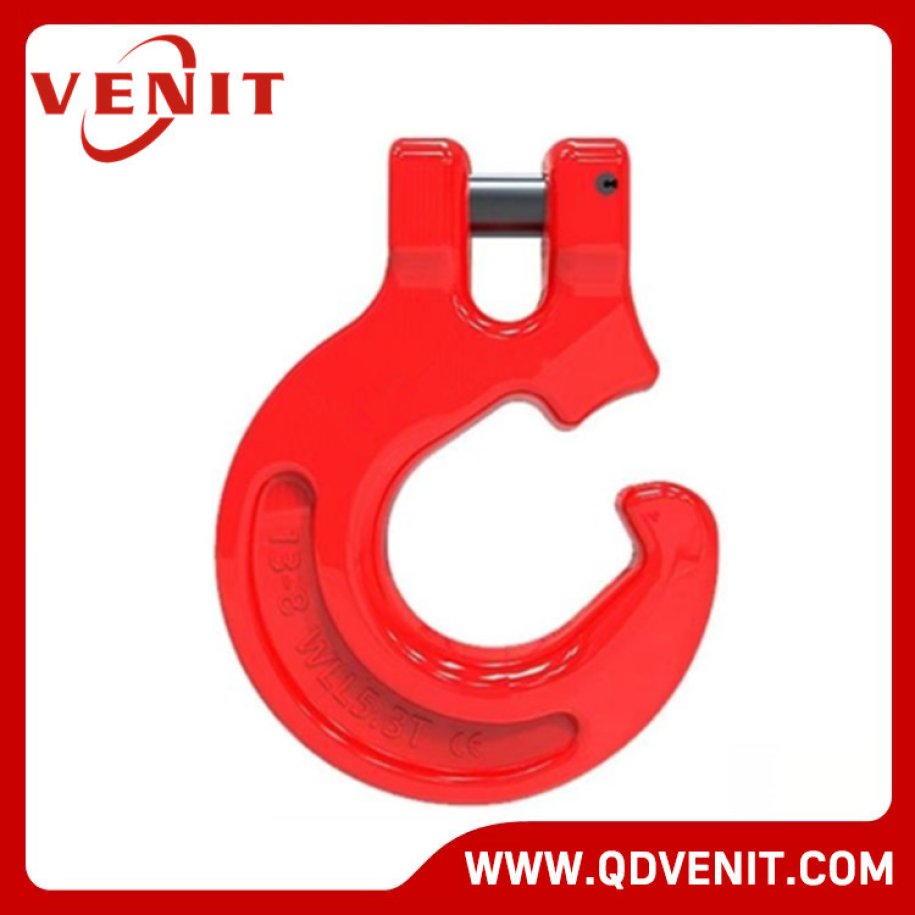

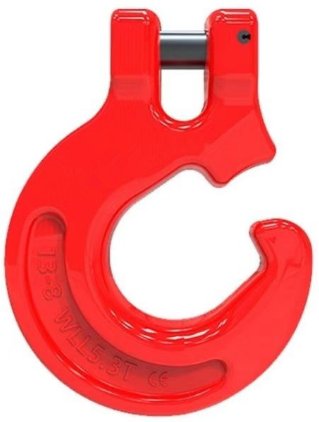

VNT102 G80 Clevis Forest Hook for Logging
Forged super alloy steel - Quenched and Tempered.
Suitable for web sling and G80 chain EN818-2.
Individually proof tested at 2.5 times Working Load Limit.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Breakage test.
100% Magnaflux Crack Detection.
All load pins are 100% individually inspected and tested.
Surface finish: Power plastified
Colour: Yellow or Red RALcode: RAL1003 or RAL3020.
Ultimate load is 4 times the Working Load Limit.
Not for lifting only for logging!

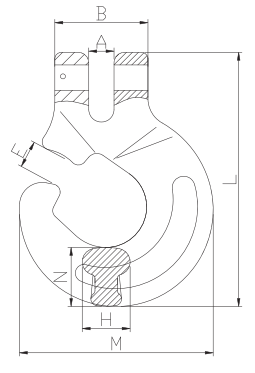

| ITEM NO. | WEIGHT/kg | WLL/T | B.L/T | B±1.2 | A±0.5 | E±0.5 | H±1 | M±2 | N±0.5 | L±2 |
| VNT102-6 | 0.413 | 1.12 | 4.48 | 31 | 8 | 8.5 | 18 | 66.5 | 25 | 83 |
| VNT102-7/8 | 0.413 | 2 | 8 | 35 | 9.5 | 9.8 | 18 | 72.7 | 22.2 | 95.5 |
| VNT102-10 | 0.92 | 3.15 | 12.6 | 44 | 13 | 13 | 22 | 98.3 | 33.2 | 137 |
| VNT102-13 | 1.75 | 5.3 | 21.2 | 53 | 16 | 16 | 30 | 119 | 40 | 165 |
